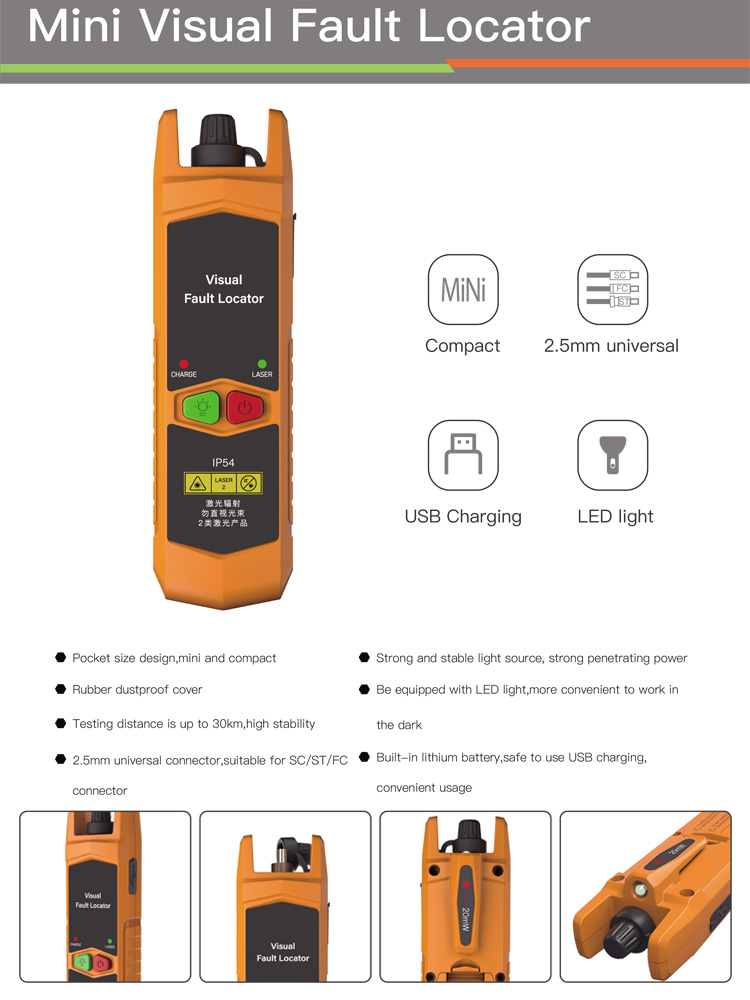

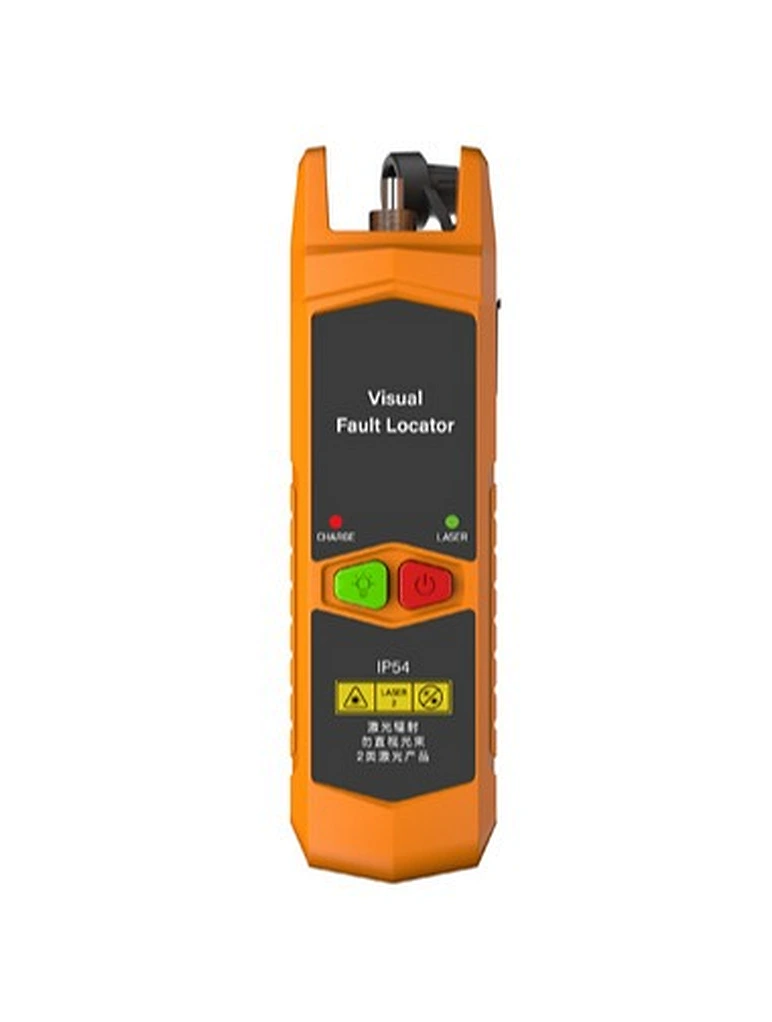

VFL Fiber Visual Fault Locator 30mw 50mw 10mw 100mw
KFL-11M
● Pocket size design,mini and compact
● Testing distance is up to 30km,high stability
● Rubber dustproof cover
● 2.5mm universal connector,suitable for SC/ST/FC connector
● Built-in lithium battery,safe to use USB charging, convenient usage
● Strong and stable light source, strong penetrating power
● Be equipped with LED light,more convenient to work in the dark
● Testing distance is up to 30km,high stability
● Rubber dustproof cover
● 2.5mm universal connector,suitable for SC/ST/FC connector
● Built-in lithium battery,safe to use USB charging, convenient usage
● Strong and stable light source, strong penetrating power
● Be equipped with LED light,more convenient to work in the dark
Quantity
● Visual Fault Locator Pocket size design,mini and compact
● Visual Fault Locator Testing distance is up to 30km,high stability
● Visual Fault Locator Rubber dustproof cover
● visual fault locator 30mw 2.5mm universal connector,suitable for SC/ST/FC connector
● visual fault locator 30mw Built-in lithium battery,safe to use USB charging, convenient usage
● visual fault locator 30mw Strong and stable light source, strong penetrating power
● visual fault locator 30mw Be equipped with LED light,more convenient to work in the dark
| Model | KFL-10 | KFL-20 | KFL-30 | |
| Power range | 10mW | 20mW | 30mW | |
| Testing distance | 8-10km | 15-20km | 25-30km | |
| Working time | Battery type | 5H | 4H | 2H |
| Charging type | 10H | 8H | 4H | |
| Product name | optical power meter | |||
| Wavelength | 650nm | |||
| Laser type | LD | |||
| Frequency | CW / 2Hz | |||
| Working temperature | -20 ~ +60 (℃) | |||
| Visual Fault Locator LED light | Yes | |||
| Power supply | AAA 1.5V battery X2 / Lithium battery 1000mAh | |||
| Charging port | USB charging(only for charging type) | |||
| Size | 127 x 36.5 x 28 (mm) | |||
| Weight | 61 g (with battery) | |||
