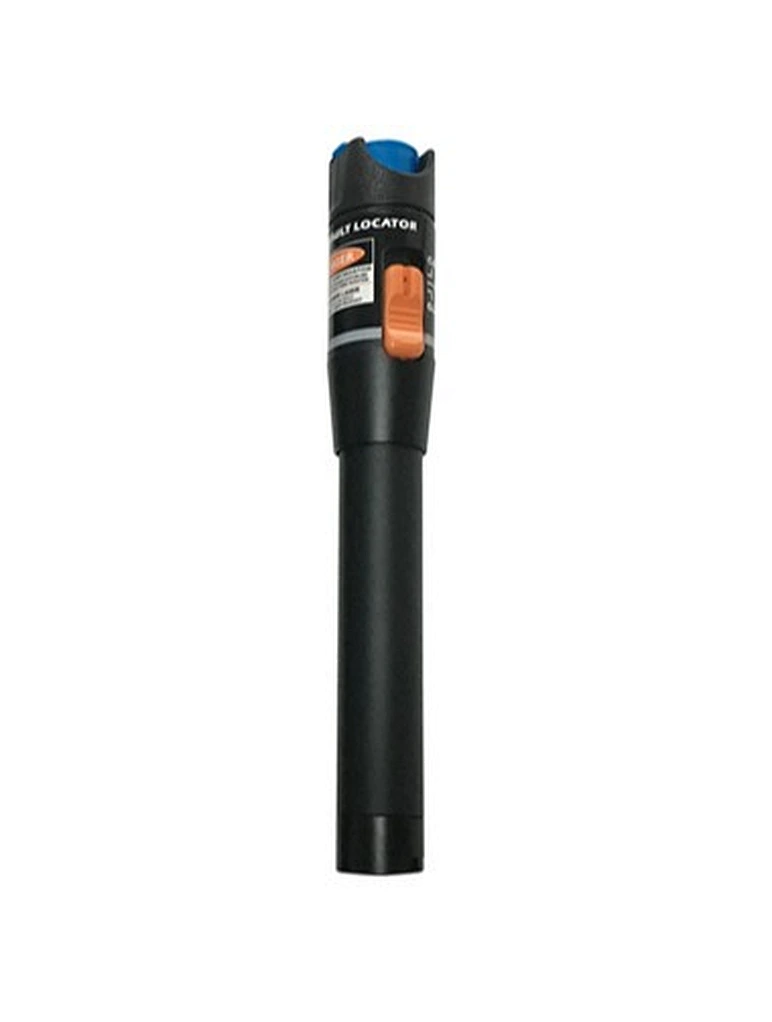

Best VFL Fiber Optic Visual Fault Finder Locator
WK-860VP
● Ergonomic design, sturdy and compact, easy to carry
● 2.5mm universal connector, suitable for FC, SC, ST
● Stable laser output, 10/20/30mw optional
● With CW continuous wave and 2Hz modulated wave output
● Plastic and metal combination to create a different texture
● Strong light source, strong penetrating power, stable and outstding performance
● High-quality laser chip easily penetrates fiber
● 2.5mm universal connector, suitable for FC, SC, ST
● Stable laser output, 10/20/30mw optional
● With CW continuous wave and 2Hz modulated wave output
● Plastic and metal combination to create a different texture
● Strong light source, strong penetrating power, stable and outstding performance
● High-quality laser chip easily penetrates fiber
Quantity
vfl visual fault locator/fault locator fiber optic Combined with ergonomic design, it is mini and compact,
simple to operate, easy to carry, and equipped with light-emitting diodes for status indication.
vfl visual fault locator/fault locator fiber optic can be used for visual testing of optical fibers, optical cables,
and connectors. When the tested optical fiber has a breakpoint, the laser light transmitting along the optical
fiber will leak red light at the breakpoint, and the visible light can determine the position of the breakpoint.
vfl visual fault locator/fault locator fiber optic effect depends on the fiber protective layer and the color of the cover.
| Name | vfl visual fault locator/fault locator fiber optic | ||
| Model | TWH-60VP -10 | TWH-60VP -20 | TWH-60VP -30 |
| Output power | ≥10mW | ≥20mW | ≥30mW |
| Wavelength | 650nm | ||
| Optical connector | Universal 2.5mm adapter (FC / SC / ST) | ||
| Modulation frequency | CW / 2Hz | ||
| Working temperature | 0~+60°C,< 90%RH | ||
| Storage temperature | -20~ +70 °C, < 90%RH | ||
| Power supply | 2xAA batteries | ||
| Continuous working time | 12h | 10h | |
| Size | 175*26*26mm | ||
| Weight | 173g | ||
