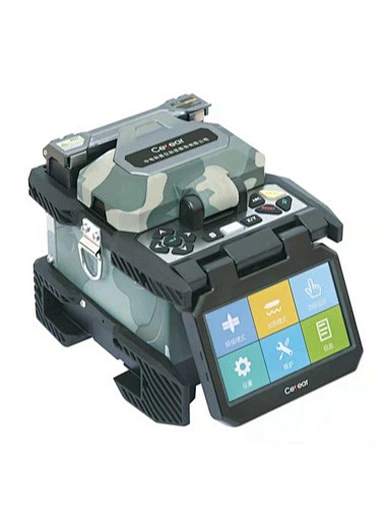

Optical Cable Single Mode Fast Fusion Splicer 6481
6481A
●7s fast welding, 15s efficient heating Mingle
●5mm ultra-short cutting length optical fiber Costing
●Chipped ceramic pressor foot, ceramic V-groove, multi-in-one fixture
●Double - way fusion, automatic fusion, intelligent heat shrinkage
●The USB and SD card interface automatically upgrades software on the USB flash drive
●Buy a built-in modular lithium battery that fuses and heats up at least 220 times
●Protective of dust, waterproof, anti - fall, environmental adaptability
●5mm ultra-short cutting length optical fiber Costing
●Chipped ceramic pressor foot, ceramic V-groove, multi-in-one fixture
●Double - way fusion, automatic fusion, intelligent heat shrinkage
●The USB and SD card interface automatically upgrades software on the USB flash drive
●Buy a built-in modular lithium battery that fuses and heats up at least 220 times
●Protective of dust, waterproof, anti - fall, environmental adaptability
Quantity
| Name | splicing single mode fiberfiber cable splicing machine pricesplicing single mode fiberfiber cable splicing machine pricesplicing single mode fiberfiber cable splicing machine pricesplicing single mode fiberfiber cable splicing machine pricesplicing single mode fiberfiber cable splicing machine price | |
| Product Model | 6481A | 6481B |
| Number of motors | six motors | four motors |
| Alignment mode | Precision core, cladding, manual | cladding, manual |
| Applicable optical fibers | Conform to the common optical fibers, skins and jumpers specified in ITU-T G.651-653, G.655 and G.657 | |
| Fiber diameter coating | 80 ~ 150μm, coating: 0.1 ~ 3mm | |
| Welding loss (typical value) | 0.02dB (SMF); 0.01dB (MMF); 0.04dB (DSF); 0.04 dB (NZDSF) | 0.03dB（SMF）；0.02dB（MMF）； 0.05dB（DSF）；0.05dB（NZDSF） |
| Welding time (typical value) | 7s (fast mode) | |
| Heating time | less than 15s (40mm, 23℃) | |
| Tension test | 1.96 ~ 2.25N | |
| Heat shrink tubing | 60mm, 40mm and a series of heat shrink tubing | |

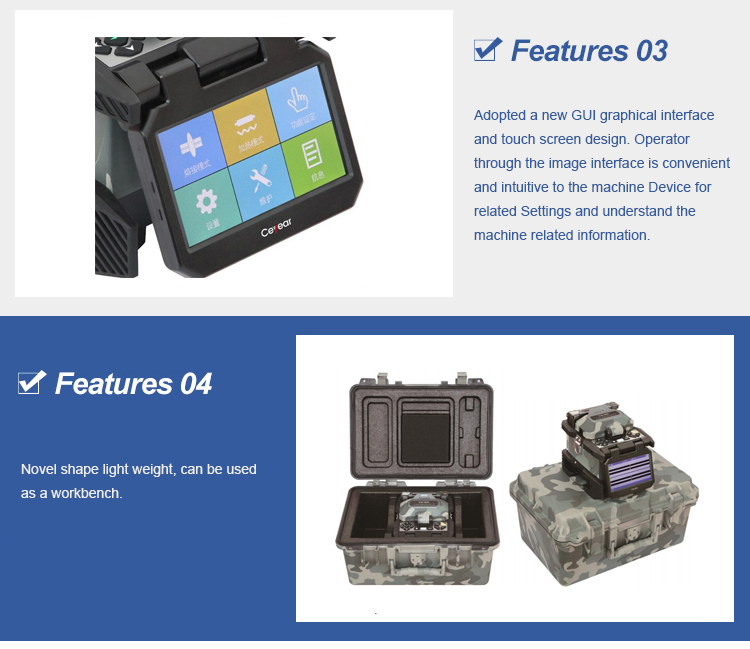

| Image display | 4.3-inch LCD screen | |
| Weld record | 30000 sets /200 images | 30000 sets |
| Battery capacity | 11.1V, ≥6400mAh | |
| Battery life | cycle charging times up to 300 ~ 500 times, customers can be replaced | |
| Typical electrode life | 4000 times, which can be replaced by the customer | |
| Construction lighting | Built-in high brightness, wide range of lighting | |
| External power | AC: 100 ~ 240V, 60Hz, 0 ~ 1.5A; DC: 10 to 15V | |
| External | USB/SD (customized) | |
| Dimensions | 120mm (w) ×130mm (H) ×154mm (D) (excluding rubber cushion) | |
| Weight | 1.8kg(without battery), 2.1kg(including battery) | 1.65kg(without battery), 1.95kg(including battery) |
