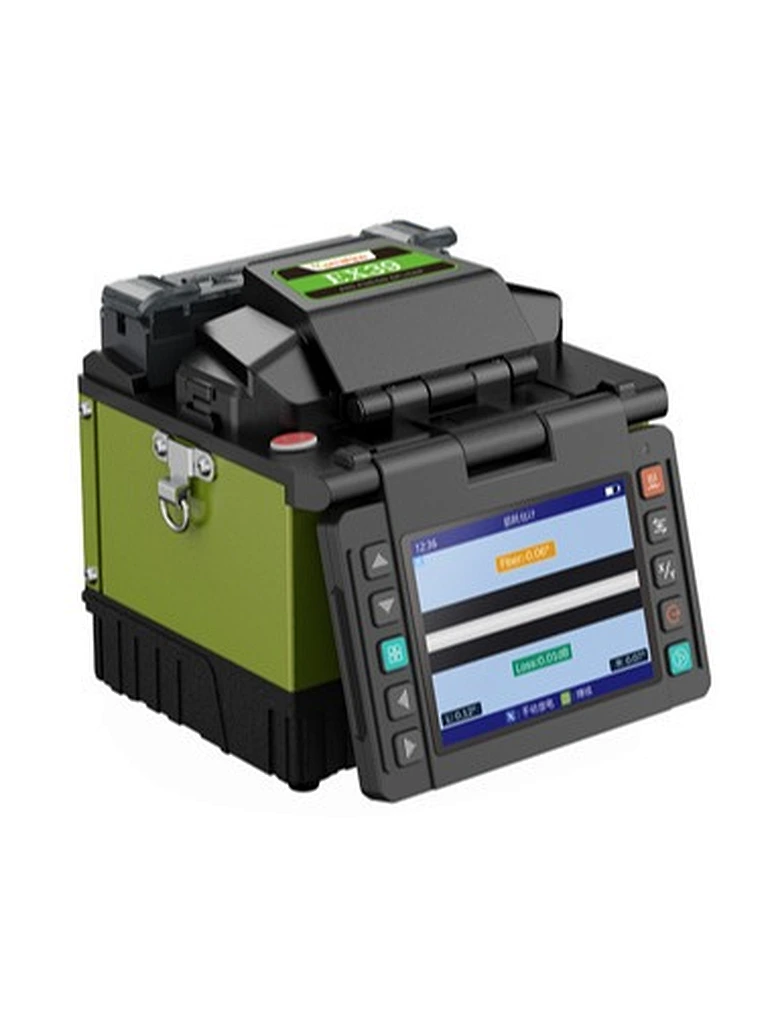

Small Portable Mini Fusion Splicer
EX39
● Efficient,versatile,lightweight&portable

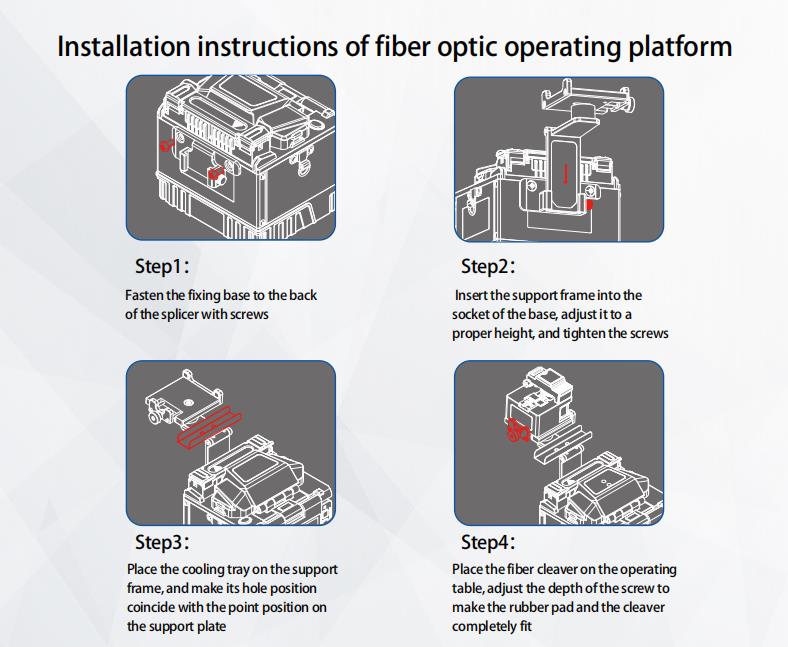

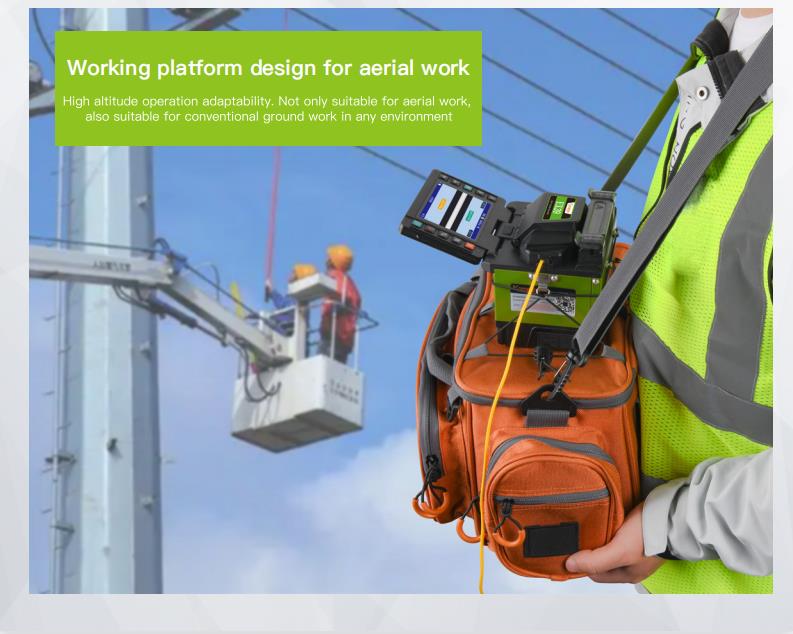

● Working platform design for aerial work

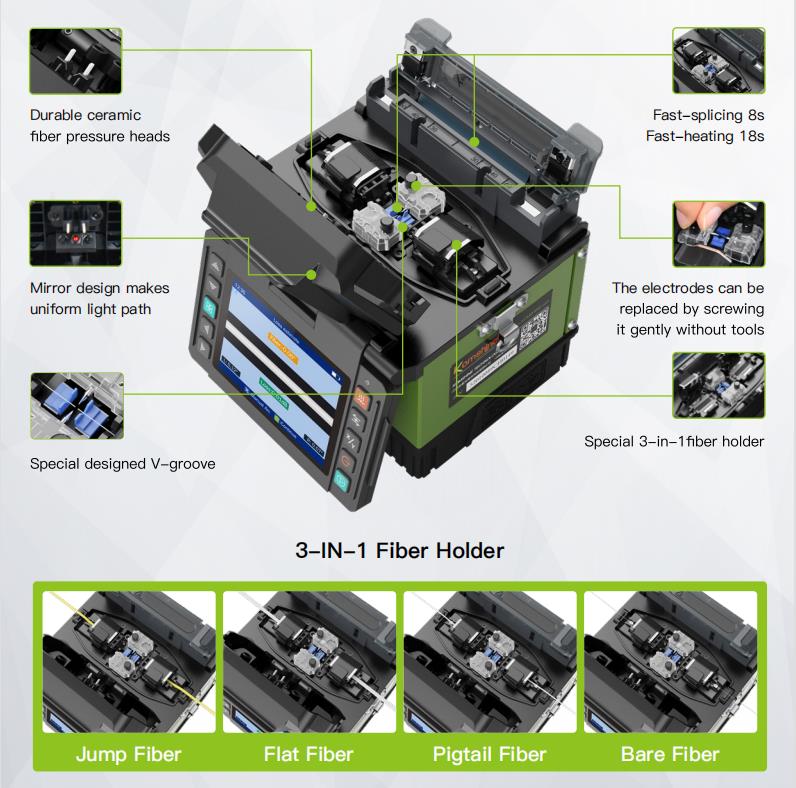

● Special 3-in-1 fiber holde
● 3 years warranty
● Electrode life around 5000 times(Replaceable)

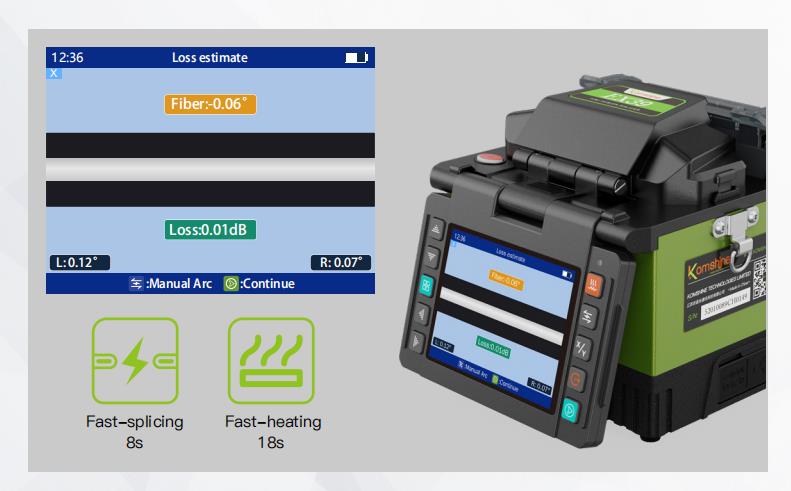

● Automatic splicing & automatic heating
● Innovatively no need tools to replace electrodes
● Support 120 times of splicing + heating when fully charged
● Working platform design for aerial work
● Special 3-in-1 fiber holde
● 3 years warranty
● Electrode life around 5000 times(Replaceable)
● Automatic splicing & automatic heating
● Innovatively no need tools to replace electrodes
● Support 120 times of splicing + heating when fully charged
Quantity
Mini Fusion Splicer EX39 is an all-round portable optical fiber fusion splicer specially developed for FTTx fiber access engineering, security monitoring and maintenance engineering. Compared with the previous generation products, it has several major features: 1.Mini-humanized body design; 2.Aerial work table design; 3.Convenient cutting knife operating table design; 4. Innovative tool-free electrode replacement design.
| Name | Mini Fusion Splicer |
| Applicable Fibers | SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655) |
| Average Loss | SM: 0.03dB / MM: 0.01dB / DS: 0.04dB / NZDS: 0.04dB / G.657: 0.03dB |
| Return Loss | Better than 60dB |
| Typical Splicing Time | SM Quick mode :8 sec / SM Average: 10 Sec |
| Fiber Aligning | Active Clad-Alignment |
| Mini Fusion Splicer Fiber Diameter | Cladding diameter:80～150μm |
| Coating diameter:100～1000μm | |
| Magnification | X, Y, XY, X/Y : 320 times magnification |
| Image display | 3.5”color high resolution (800 x 480) display |
| Tensile test | 1.96~2.25N |
| Splicing Mode | Maximum 128 groups |
| Mini Fusion Splicer Battery capacity | 3400mAH |
| 120 times (splicing and heating) | |
| Electrode life | About 5000 times discharges |
| External interface | USB 2.0 |
| Result record | 10000 sets of splice data, or 2000 sets of splice images |
| Power Supply | AC Input 100- 240V, DC Input 9-14V |
| Mini Fusion Splicer Working environment | Temperature: -20°C ~ +55°C |
| Humidity: 95% RH (40°C non-condensing) | |
| Altitude: 0~5000m | |
| Dimensions | 130H x 113W x 126D mm |
| Weight | 1.06kg without battery / 1.35kg with battery |
