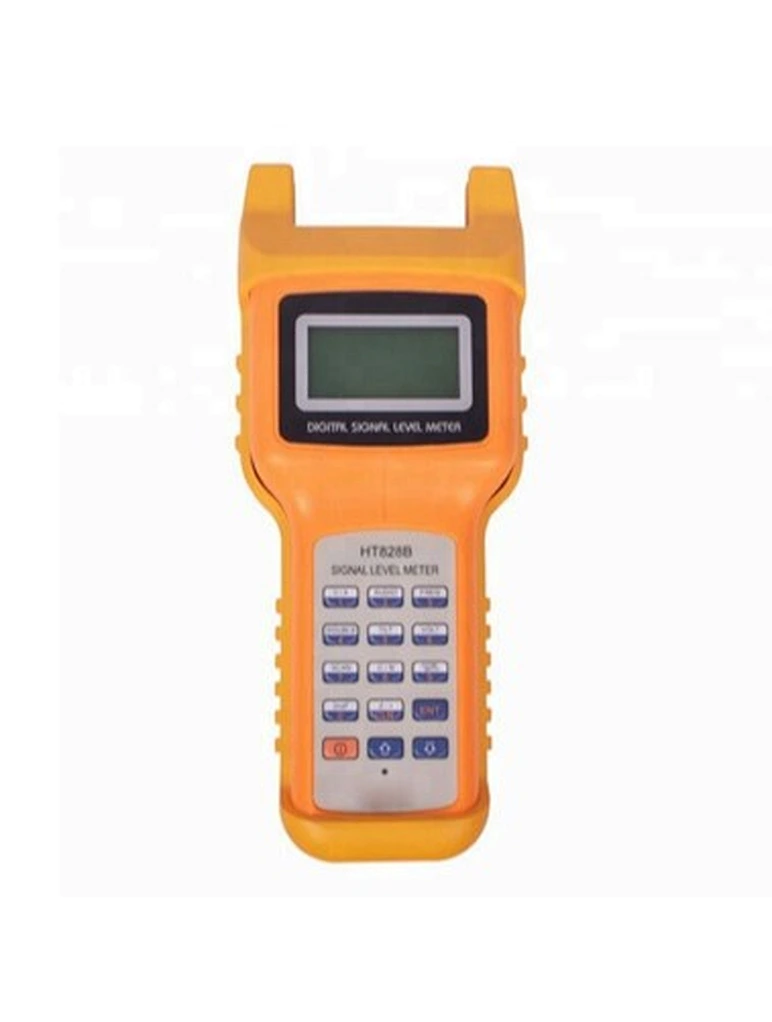

3 in 1 Cable Catv Digital Signal level Meter HT828B
HT828B
● Single channel measure
● Audio carrier measure
● Single frequency measure
● Double channel measure
● Voltage measure
● Tilt measure
● C/N measure
● Audio carrier measure
● Single frequency measure
● Double channel measure
● Voltage measure
● Tilt measure
● C/N measure
Quantity
Full digital TV/CATV/FM signal level measurement, Dual channel frequency level measurement, inclination
ratio measurement, C/N, V/A measurement, voltage measurement of trunk line alternating current,
accompanying sound monitoring and backlight LCD.The Low price rf signal evel meter/Catv signal level
meter , HT828B is able to measure EQ, C/N, V/A and trunk volt in the CATV analog system, the number
keys is designed to direct Input frequency so that work would be easier.
| Name | Signal level Meterdigital signal level meter 3 in 1 |

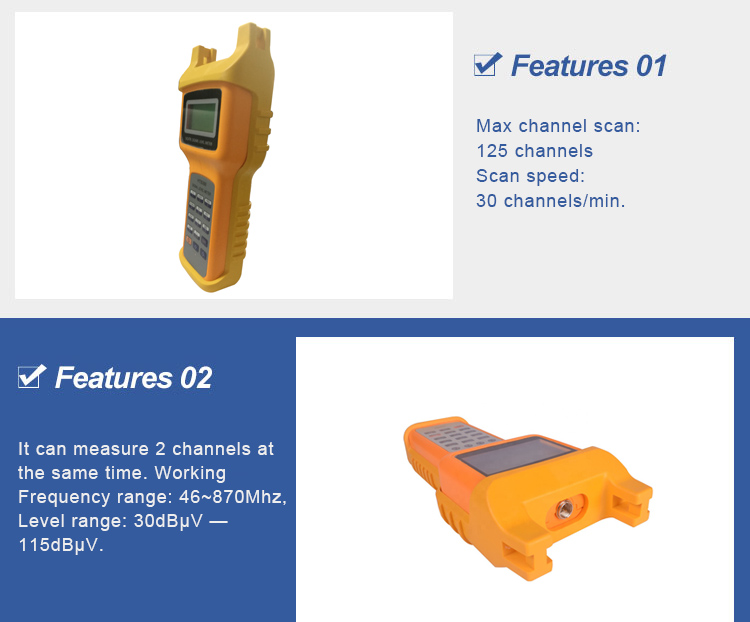

| Frequency Range | 46 — 870MHz |
| Resolution Bandwidth | 280KHz ± 50KHz |
| Channels | All user designate Channels |
| Level Range | 30dBμV — 115dBμV |
| Accuracy | ±1.5dBuV(under room temperature) ±2.5dBuV(- l0 — +40℃) |

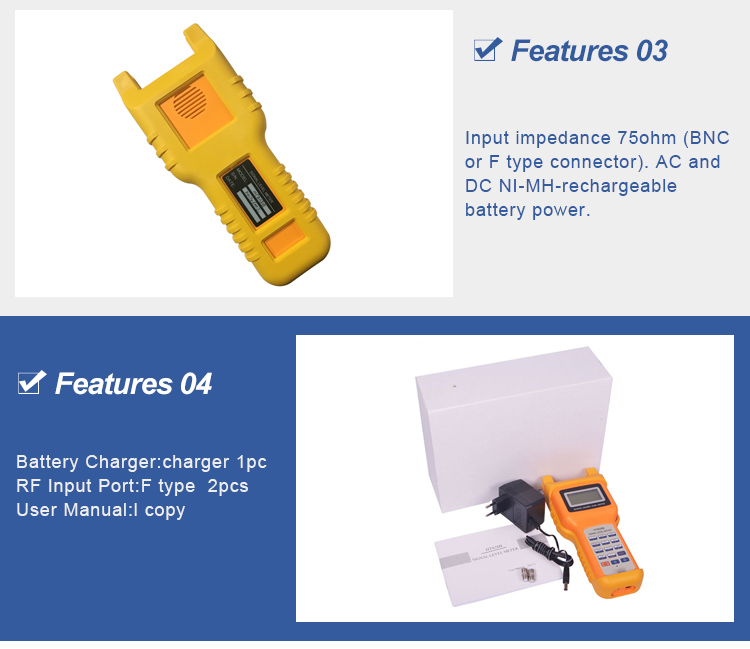

| input impedance | 75Ω(BNC or F connector) |
| Voltage Range | 0 -- 100VAC |
| Dimension | 214mm x 94mm X 47mm |
| Weight | 1.4 kg |
| Working Temperature | -l0℃ -- + 40℃ |
| Display LCD | TN LCD with back light |
| Packaging | Signal Level Meter 1pcs in one small box 10pcs in one carton carton size: 53*48*33cm G.W.: 15kg |
