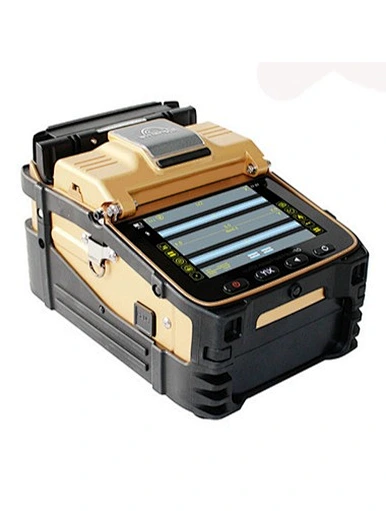

Signal Fire Splicing Machine Price AI-8C
AI-8C

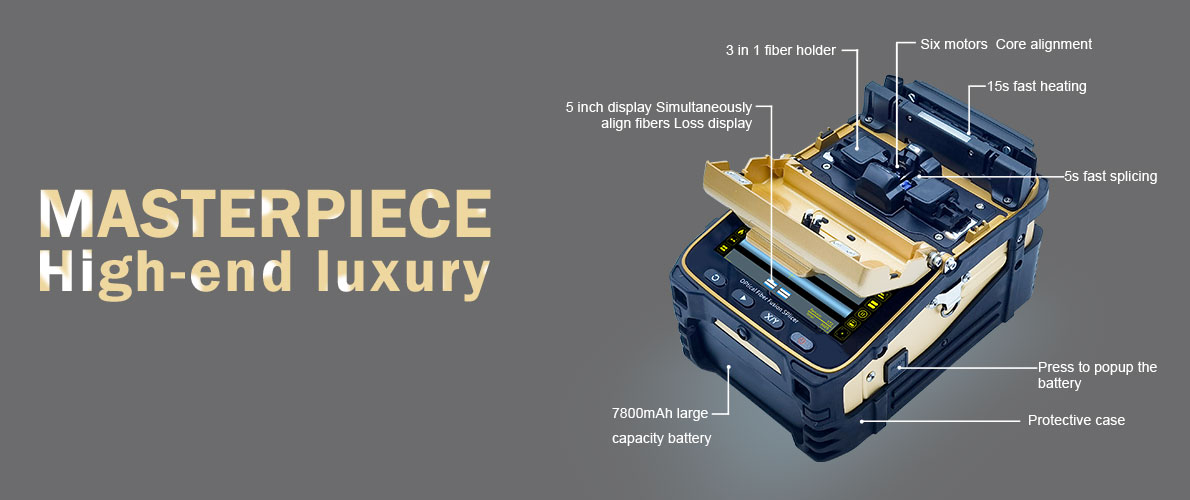

Signal Fire AI-6C/7C/8C/9 use the latest core alignment technology with auto focus and six motors,
it is a new generation of fiber fusion splicer. It is fully qualified with 100 km trunk construction,
FTTH project, security monitoring and other fiber cable splicing projects.
it is a new generation of fiber fusion splicer. It is fully qualified with 100 km trunk construction,
FTTH project, security monitoring and other fiber cable splicing projects.
Quantity
| Name | signal fire optical fiber fusion splicersignal fire splicing machinesignal fire optical fiber fusion splicersignal fire splicing machinesignal fire optical fiber fusion splicersignal fire splicing machinesignal fire optical fiber fusion splicersignal fire splicing machinesignal fire optical fiber fusion splicersignal fire splicing machinesignal fire optical fiber fusion splicersignal fire splicing machine |
| Applicable Fibers | SM(G.652&G.657)、MM（G.651）、DS(G.657)、NZDS（G.655） |
| Splice Loss | 0.025dB（SM）、0.01dB（MM）0.04dB（DS/NZDS） |
| Focus mode | 6 motors Auto focus |
| Fiber alignment | Core/cladding alignment Manual alignment |
| Typical splicing time | 6S |
| Typical heating time | 15S Fast heating function, heating time can be set ，Automatic heating(Preheating),heating programs(max.10) |
| Control technology | Real-time control and calibration of fusion ARC |
| Return loss | Better than 60DB |
| Fiber diameter | Cladding Diameter 80-150μm，Coating Diameter 100-1000μm |
| Fiber Cleave Length | Coating less than 250µm：5-16mmCoating less m250-1000μm:16mm |
| Shrinkable tube | 60mm、50mm、40mm、25mm |
| Boot time | 1 second |
| Tension Test | Standard 2N |
| Fiber holders | 3 in 1 fiber holder，SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable |
| Magnification | 300 for X or Y , 150 for XY view |
| Screen | 5 inch TFT color display |
| Software update length | Automatically update, Update by a key |
| Splicing Mode | Normal / high precision splicing(splicing prograns max 100) |
| Splicing method | Fully automatic,step by step splicing |
| Splicing record storage | Synchronize to the phone, the server to cloud storage unlimited |
| Built-in battery | 7800 mAh high-capacity lithium battery, charging time≤3.5 hours, continuous splicing and heating about 240 times |
| Power supply | Input AC100-240V 50 / 60HZ, output DC13.5V / 4.8A |
| Operating Conditions | Temperature -15 ~ +50 ℃ |
| Product protection | Waterproof IP 22,dust proof IP54,shock-resistant |
| Language setting | 10 languages to switch freely |
