FTTH Fiber Optic Power Meter Price Test With VFL
WK-3213
● TFT color screen
● 10 minutes Auto-off function can be activated or deactivated, date and time setting.
● Optional Chinese/English display.
● Can test the three wavelengths of 1310, 1490 and 1550nm in PON system simultaneously
● Used in Burst mode measurement of 1310nm upstream.
● The instrument can set the measuring threshold and calibration wavelength
● Support VFL function
● Support Optical Power Meter test mode

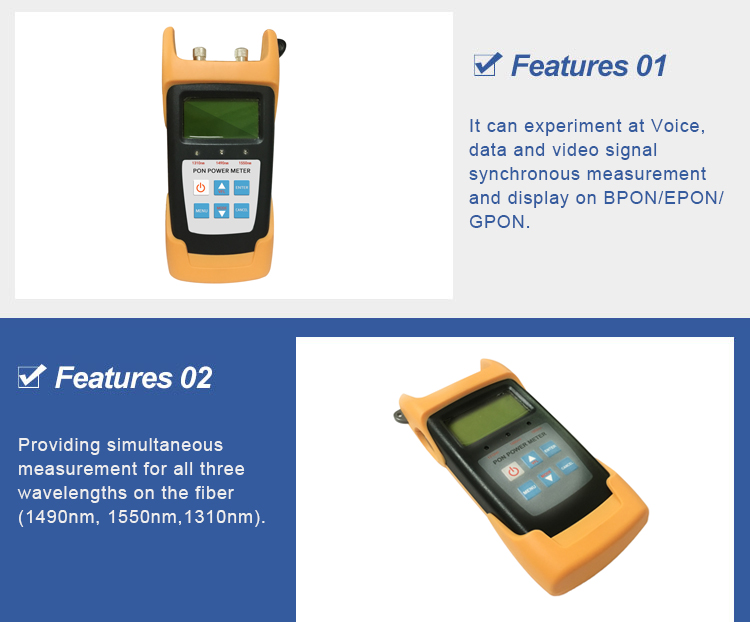

● Support for simultaneous measurement and display of experimental voice, data and video signals on the BPON/EPON/GPON architecture.
● 10 minutes Auto-off function can be activated or deactivated, date and time setting.
● Optional Chinese/English display.
● Can test the three wavelengths of 1310, 1490 and 1550nm in PON system simultaneously
● Used in Burst mode measurement of 1310nm upstream.
● The instrument can set the measuring threshold and calibration wavelength
● Support VFL function
● Support Optical Power Meter test mode
● Support for simultaneous measurement and display of experimental voice, data and video signals on the BPON/EPON/GPON architecture.
Quantity

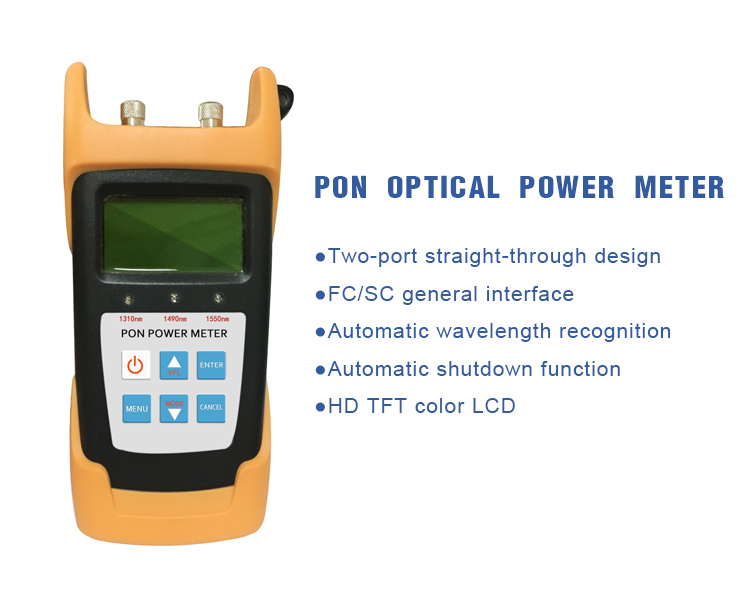

PON Optical Power Meter target at the FTTx application and maintenance. This power meter is able to
simultaneously test and estimate the signals of the voice, data and video. power meter with vfl power meter ftth is an essential and ideal tool
for the construction and maintenance of the PON projects.
| power meter with vfl Model | PON power meter | ||
| 1310nm | 1490nm | 1550nm | |
| Pass Zone(nm) | 1260~1360 | 1470~1505 | 1535~1570 |
| Isolation (dB) | >40*1490 | >30*1310 | >40*1310 |
| Isolation(dB) | >40*1550 | >40*1550 | >40*1490 |
| Measurement Range(dBm) | -40~+10 | -40~+10 | -40~+20 |
| Measurement Accuracy | |||
| Connatural uncertainty(dB) | ±0.5 | ||
| Linearity(dB) | ±0.1 | ||
| Passing through insertion Loss(dB) | <1.5 | ||
| General Information | |||
| power meter ftth Detector Type | InGaAs | ||
| Optical Connector | FC/SC Interchangeable | ||
| power meter ftth Fiber Type | 9/125um | ||
| power meter with vfl Display | LCD:128*64 | ||
| Measurement Unit | dB/dBm/xW | ||
| power meter ftth Resolution (dB) | 0.01 | ||
| power meter with vfl Power Supply | 3 AA1.5V battery | ||
| Operation Temperature(℃) | -10~60 | ||
| Storage temperature(℃) | -25~70 | ||
