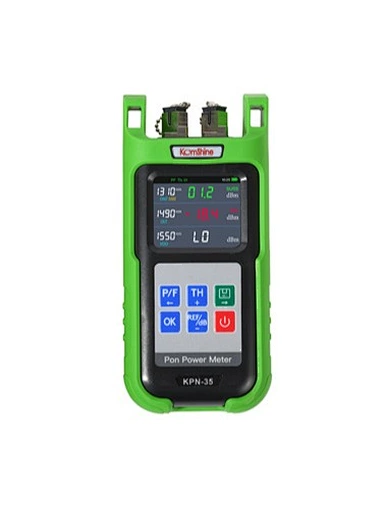

Fiber Optical Gpon PON Power Meter KPN-35
KPN-35
● 2.5mm universal connection Applicable to FC/SC/ST connectors
● ±0.2dB accuracy
● Wavelength range: 850nm~1625nm
● Resolution 0.01dB
● Measurement range -70~+10dBm/ -50~+26 dBm
● Manual calibration value

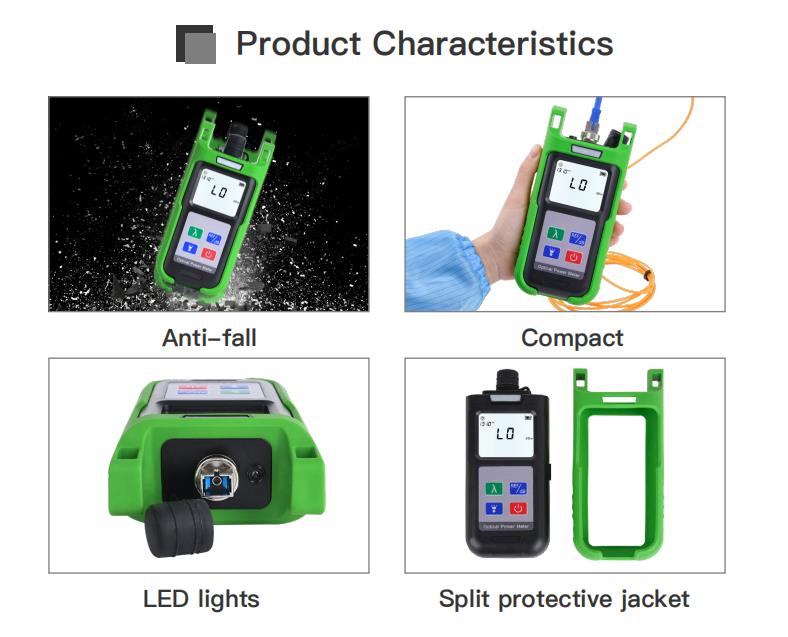

● Waterproof button suitable for all kinds of outdoor environment
● Silicone shell protection, prevent falling 2m
● Equipped with LED light, not afraid of the dark
● ±0.2dB accuracy
● Wavelength range: 850nm~1625nm
● Resolution 0.01dB
● Measurement range -70~+10dBm/ -50~+26 dBm
● Manual calibration value
● Waterproof button suitable for all kinds of outdoor environment
● Silicone shell protection, prevent falling 2m
● Equipped with LED light, not afraid of the dark
Quantity

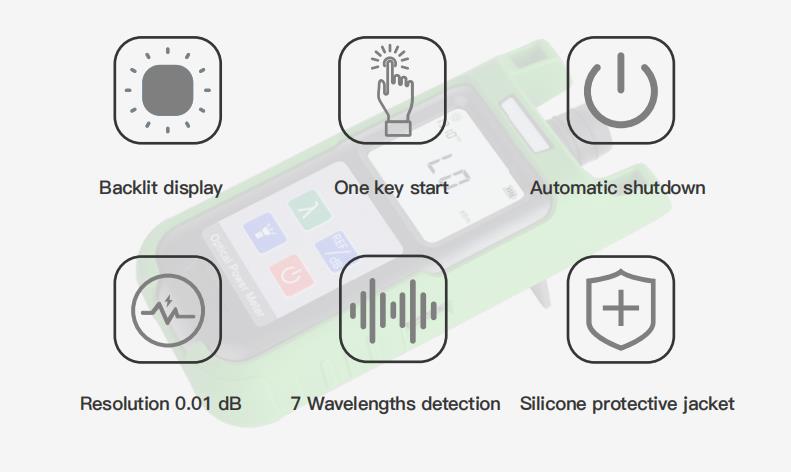

Automatic backlight off,Users can simultaneously test the PON network in 1490nm, 1550nm, 1310nm
three wavelengths.Simultaneously measure and display different PON architectures, data and video
signals, and voice reminders.PON Power Meter price provides ten sets of threshold options, with pass,
warning, fail modes,manual calibration.
Set the meter test threshold through the management software.
| Name | PON Power Meter price | ||
| Model | PON | ||
| Measuring wavelength | 1310nm | 1490nm | 1550nm |
| Sensor Type | InGaAS | ||
| Linearity | ±0.2dB@1550nm≥-40dBm | ||
| Isolation With filtering function | 1490nm Wavelength＞40dB | 1310nm Wavelength＞40dB | 1310nm Wavelength＞40dB |
| 1550nm Wavelength＞40dB | 1550nm Wavelength＞30dB | 1490nm Wavelength＞30dB | |
| Testing range | -40dBm～+16dBm | -50dBm～+16dBm | -50dBm～+23dBm |
| Insertion loss in penetration mode | Less than 1.5dB | ||
| Measurable optical frequency broadband | 1260～1360 | 1480～1500 | 1539～1565 |
| Inherent uncertainty | 0.5dB±1nW@1550nm | ||
| Display resolution | 0.01dB | ||
| Threshold setting | 5 groups are set by the host computer | ||
| Calibration wavelength | 1310nm/1490nm/1550nm | ||
| PON Power Meter price Data storage | 900 groups | ||
| Operating temperature | -10℃～+50℃ | ||
| Relative humidity | 0%～95%RH | ||
| Interface type | SC/UPC(Other types can be customized） | ||
| Power supply | 3 AA batteries | ||
| Standard packaging | Description | ||
| PON Power Meter price KPN-35 | KPN-35 main machine, USB line, warranty card, user guide, package | ||
