Micro OTDR Cost Equipment Connector Testing Machine NK5600
NK5600
● Novel appearance, durable
● Simplest interface and intuitive operation
● Unique dual operation mode of key plus touch screen
● One-key analysis
● High capacity of lithium battery (more than 10 hours continuous working time)
● Simplest interface and intuitive operation
● Unique dual operation mode of key plus touch screen
● One-key analysis
● High capacity of lithium battery (more than 10 hours continuous working time)
Quantity

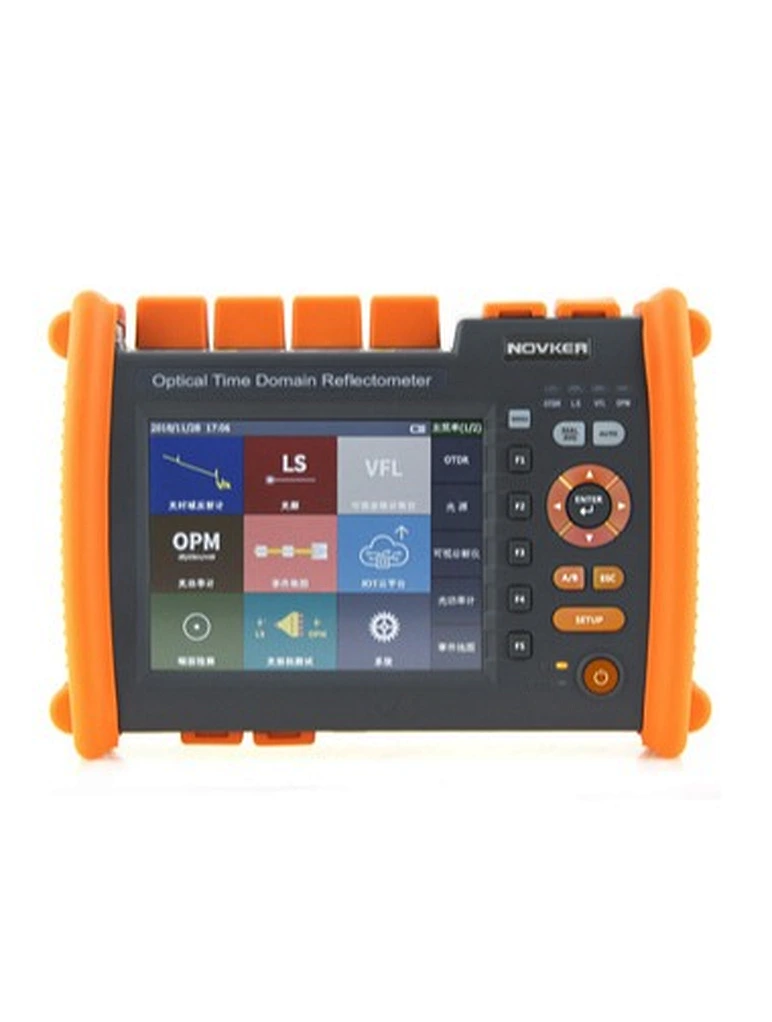

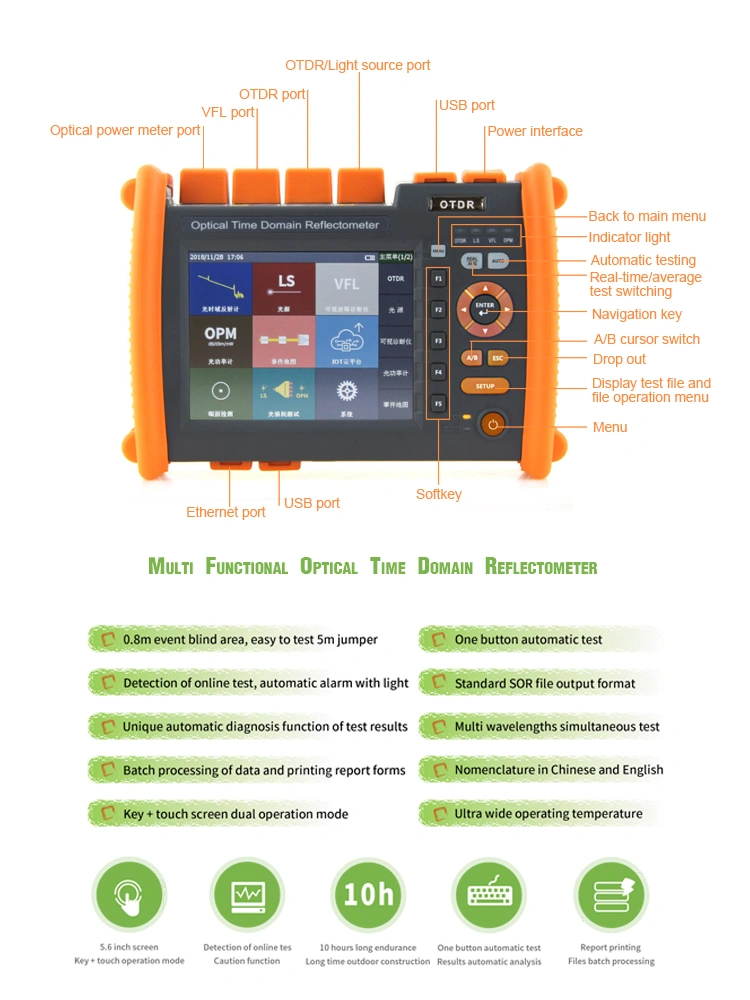

NK5600 multi-functional OTDR adopts 5.6 inch color touch screen and double operation of keys and touch.
It integrates of OTDR,Visual Fault Location, Event Map, Optical Power Meter, Light Source, multi-functions
to help customers efficiently solve the field test and maintenance; Intelligent power management, 20 hours
of super long standby, efficient guarantee of field test and maintenance.
otdr testing machineotdr costotdr testing machineotdr costotdr testing machineotdr costotdr testing machineotdr cost
| Product Name | SM Multi-Function OTDRotdr testing machineotdr cost | ||||
| Model | S1 | S2 | S3 | T1 | T2 |
| Max.Dynamic Range | 35/33dB | 38/36dB | 42/40dB | 37/35/35dB | |
| Wave-length | 1310/1550nm | 1310/1490/1550nm | 1310/1550/1625nm | ||
| Event Dead Zone | 1m | 0.8m | |||
| Type | Single-Mode | ||||
| Display | 5.8 inch color LCD with touch screen | ||||
| Attenuation Dead Zone | 6m | ||||
| Distance Range | 500m/1Km/2Km/4Km/8Km/16Km/32Km/64Km/128Km/256Km | ||||
| Measuring Pulse Width | 5ns/10ns/50ns/160ns/320ns/500ns/1000ns/5000ns/10000ns/20000ns | ||||
| Sampling Point | 256k | ||||
| Ranging Accuracy | ±(0.75m+Sampling interval+0.005%×Test distance) | ||||
| Loss Precision | ±0.05dB/dB | ||||
| Reflection Accuracy | ±3dB | ||||
| Data Storage | ≥2000 times | ||||
| Interface Type | FC/PC(Replaceable SC、ST) | ||||
| Communication Interface | USB mini-USB 10M/100M Ethernet | ||||
| VFL Output | ≥5mW | ||||
| LS Output | ≥5dBm | ||||
| OPM | +26dBm~-50dBm（Replaceable：+6dBm~-70dBm） | ||||
| Power Supply Mode | AC/DC Adapter：AC：100v~240V 50/60Hz 0.6A；Lithium battery：7.4V 6700mAh | ||||
| Operating Temperature | -5℃~50℃ | ||||
| Storage Temperature | -20℃~70℃ | ||||
| Relative Humidity | 0~95℃ Non condensation | ||||
| Weight | 1.1kg | ||||
| Volume | 227mm×160mm×70mm | ||||
