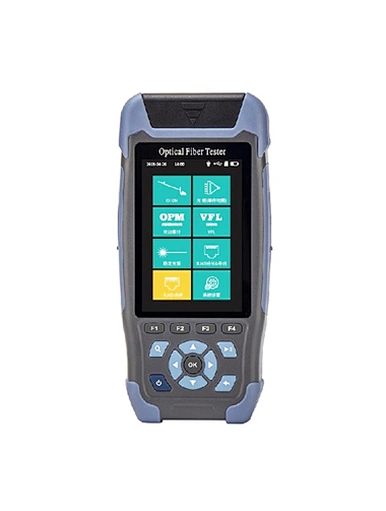

Best Networking Device Palm Types of OTDR NK3200
NK3200
Fiber link with ≤-5dBm optical signal, easy to test

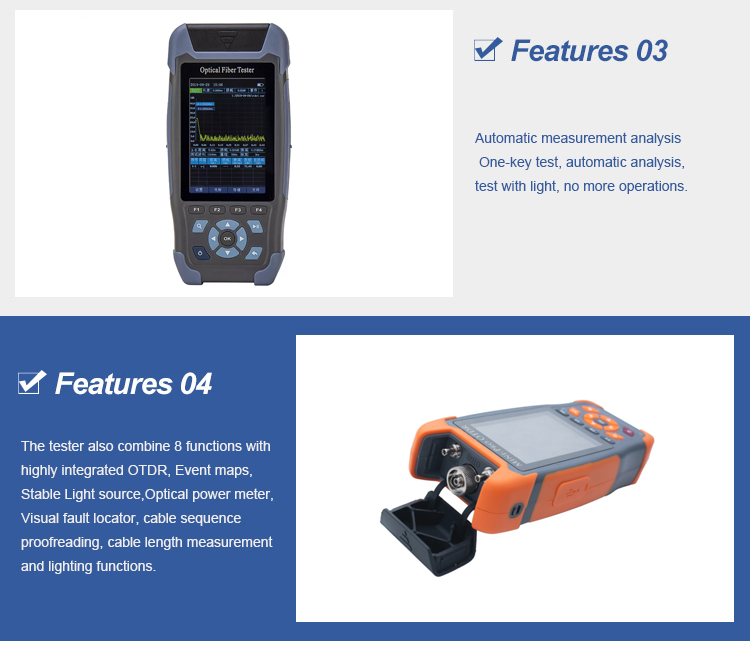

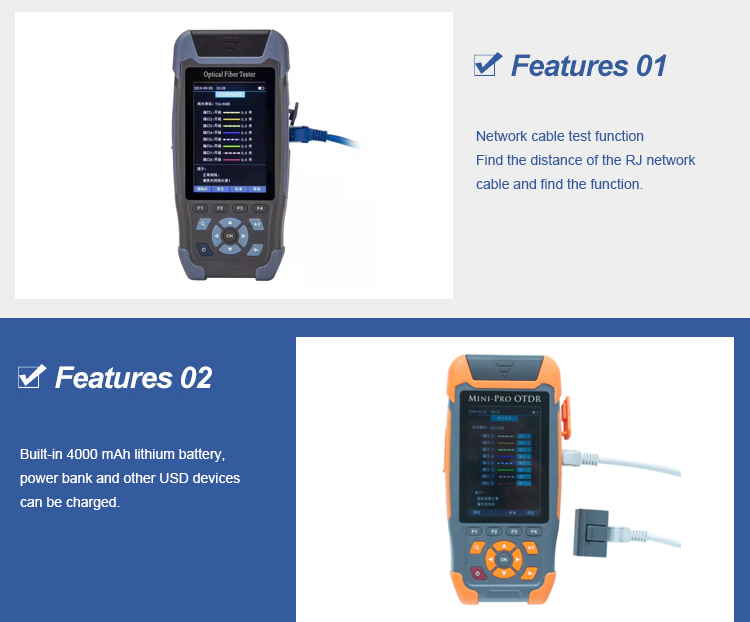

OTDR/LS/OPM/VFL/RJ45 Cable Sequence/Cable length/RJ45 tracker/Flashlight
Hand-held design, easy to carry
Brand new rubber sleeve, shockproof, fall proof
USB, rechargeable with portable battery
Long endurance, 12 hours of measurement time
3m event blind area, easy test 3m jumper
OTDR/LS/OPM/VFL/RJ45 Cable Sequence/Cable length/RJ45 tracker/Flashlight
Hand-held design, easy to carry
Brand new rubber sleeve, shockproof, fall proof
USB, rechargeable with portable battery
Long endurance, 12 hours of measurement time
3m event blind area, easy test 3m jumper
Quantity
| Name | otdr tester pricesmart otdrotdr tester pricesmart otdrotdr tester pricesmart otdr | |
| Model | 3200 | |
| Wavelength | 1310nm/1550nm±20nm | |
| Fiber Type | G.652 SM Fiber | |
| Dynamic Range | 24dB/22dB | |
| Event Blind Zone | 3m | |
| ATT Blind Zone | 8m | |
| Test Range | 500m~60km | |
| Pulse Width | 3ns~10us | |
| Ranging Accuracy | ±（1m+Sampling Interval +0.005％×Test Distance） | |
| Loss Accuracy | ±0.2dB/dB | |
| Sampling Points | 16k~128k | |
| Sampling Resolution | 0.05m~8m | |
| Reflection Accuracy | ±3dB | |
| Data Storage | Internal：≥600；External：TF Card | |
| Laser Safety Level | Class Ⅱ level | |
| File Format | SOR Standard File Format | |
| Connector | FC/UPC（Interchangeable SC、ST） | |
| OPM | ||
| Wave Range | 800nm~1700nm | |
| Interface Type | Universal Joint FC/SC/ST | |
| Test Range | -50dBm～+26dBm | |
| Uncertainty | ±5% | |
| Frequency Identification | CW/270/330/1k/2kHz | |
| Calibration Wavelength | 850/980/1300/1310/1490/1550/1625/1650nm | |
| LS | ||
| LD Type | FP-LD | |
| Output Wavelength | 1550nm±20nm | 1310nm/1550nm±20nm |
| Output Power | ≥-5dBm | |
