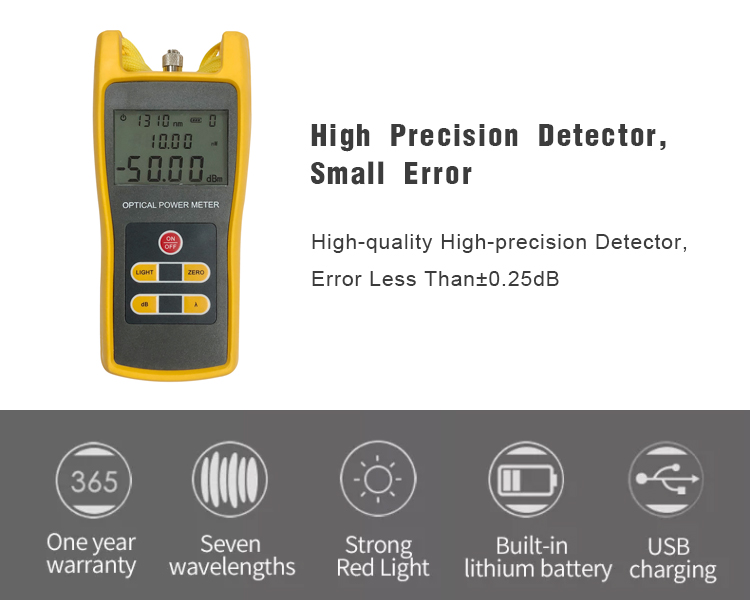

Best Mini Handheld Optical Power Meter JW3208C
JW3208C
● User self calibration function
● Comfortable LCD display and optional backlight LCD display supports night operation
● Power measurements in dBm or mw and insertion loss in dB
● Low battery consumption, more than 240 hours continual operation time for three 1.5V alkaline batteries
● 10 minutes Auto-off function can be activated or deactivated
● Comfortable LCD display and optional backlight LCD display supports night operation
● Power measurements in dBm or mw and insertion loss in dB
● Low battery consumption, more than 240 hours continual operation time for three 1.5V alkaline batteries
● 10 minutes Auto-off function can be activated or deactivated
Quantity

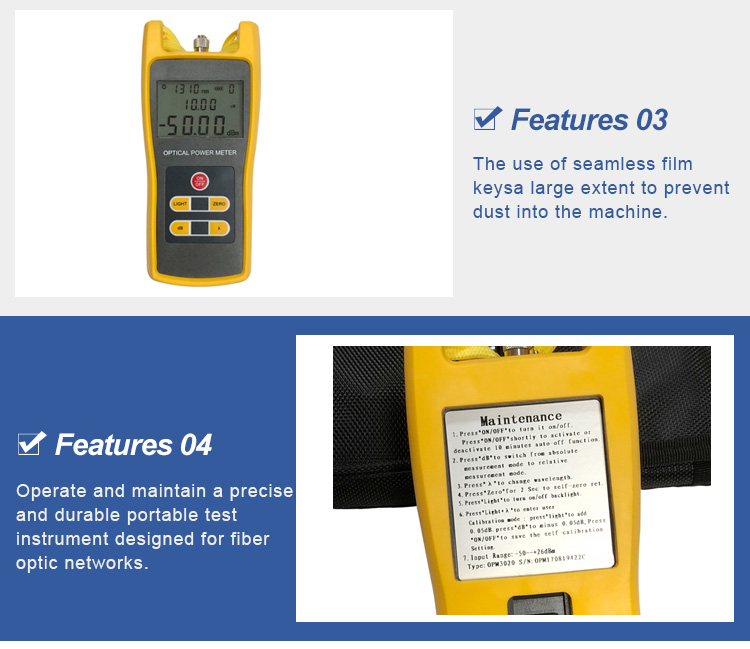

Handheld optical power meter optical power meter with laser is a compact and an easy-to-use testing
instrument for optical fiber networks, optical power meter reading can be used for absolute optical power
measurements as well as for relative loss measurements in optical fibers. It features ingenious appearance,
wide range of power measurement, high accuracy and user self-calibration function with high performance-to-price ratio.
optical power meter readingoptical power meter with laseroptical power meter readingoptical power meter with laser
| Name | optical power meter readingoptical power meter with laser | |
Type | JW3208A | JW3208C |
Wavelength(nm) | 800~1700nm | |
Detector | InGaAs | |
Measurement Range (dBm) | -70~+6 | -50~+26 |
Uncertainty | ±5% | |
Calibrated Wavelength(nm) | 850,980,1300,1310,1490,1550 | |
Resolution(dB) | 0.01 | |

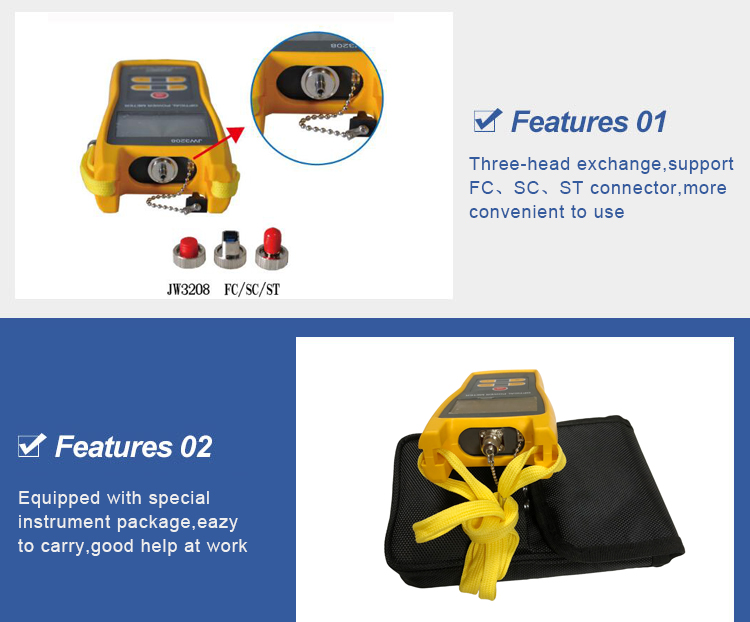

Optical Connector | FC(interchangeable SC,ST) / as well as 2.5mm universal | |
Power Supply | Alkaline Battery(3 AA 1.5V batteries) | |
Battery Operating Time | 240 h with 1.5V Battery(3) | |
Operating Temperature(℃) | -10 ~ +60 | |
Storage Temperature(℃) | -25 ~ +70 | |
Relative Humidity | 0 to 95% (non-condensing) | |
Dimension | 23.5*16*8cm | |
Weight | 0.5kg | |
