Fusion Splicer
AI-9

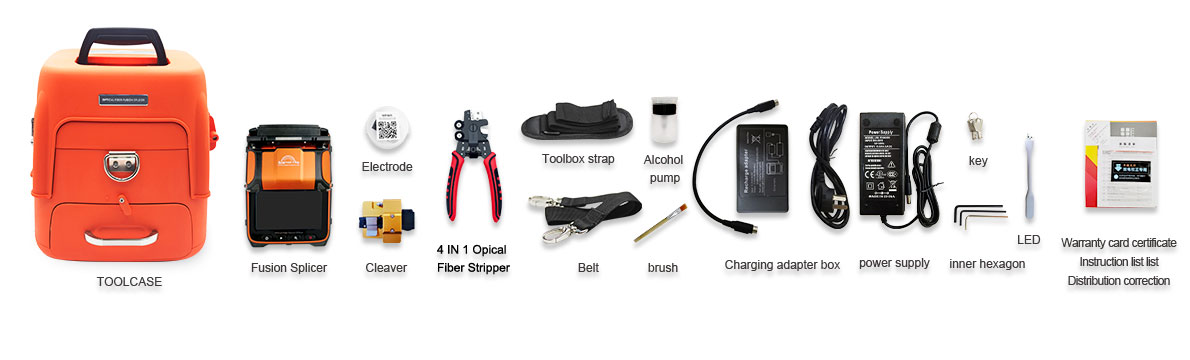

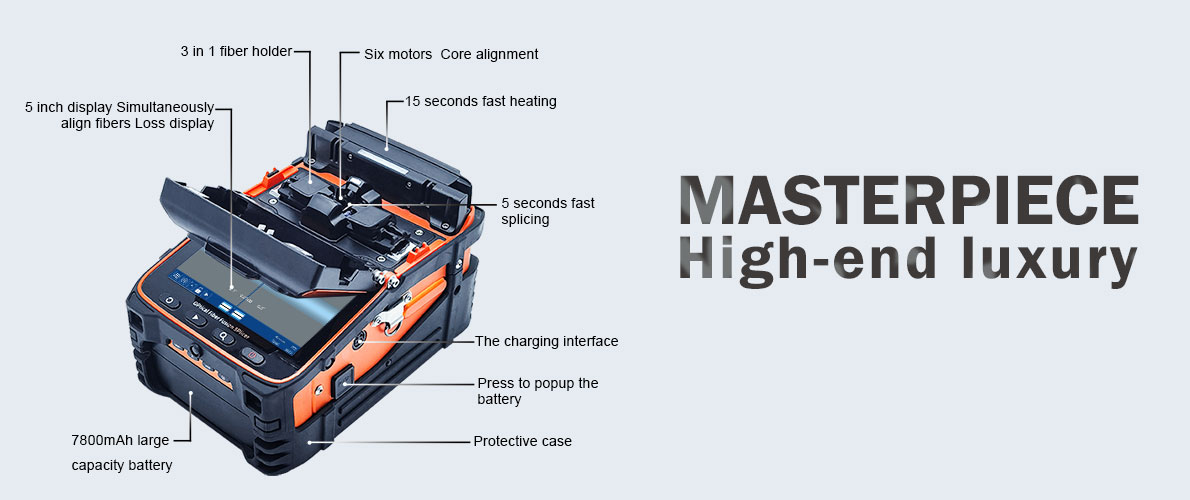

The machine uses industrial quad-core CPU, fast response, is currently one of the fastest fiber
splicing machine in the market;with 5-inch 800X480 high-resolution screen, the operation is simple
and intuitively; and up to 300 times focus magnifications,making it is very easy to observe the fiber
ith naked eyes. 6 seconds speed core alignment splicing, 15 seconds heating, the working efficiency
increased by 50% compared to ordinary splicing machines.
splicing machine in the market;with 5-inch 800X480 high-resolution screen, the operation is simple
and intuitively; and up to 300 times focus magnifications,making it is very easy to observe the fiber
ith naked eyes. 6 seconds speed core alignment splicing, 15 seconds heating, the working efficiency
increased by 50% compared to ordinary splicing machines.
Quantity
| Name | Fusion Spliceroptical fusion splicerFusion Spliceroptical fusion splicerFusion Spliceroptical fusion splicerFusion Spliceroptical fusion splicerFusion Spliceroptical fusion splicerFusion Spliceroptical fusion splicerFusion Spliceroptical fusion splicer |
| Applicable Fibers | SM(G.652&G.657)、MM（G.651）、DS(G.657)、NZDS（G.655） |
| Splice Loss | 0.025dB（SM）、0.01dB（MM）0.04dB（DS/NZDS） |
| Focus mode | 6 motors Auto focus |
| Fiber alignment | Core/cladding alignment Manual alignment |
| Typical splicing time | 5S |
| Typical heating time | 15S Fast heating function, heating time can be set ，Automatic heating(Preheating),heating programs(max.10) |
| Control technology | Real-time control and calibration of fusion ARC |
| Return loss | Better than 60DB |
| Fiber diameter | Cladding Diameter 80-150μm，Coating Diameter 100-1000μm |
| Fiber Cleave Length | Coating less than 250µm：5-16mmCoating less m250-1000μm:16mm |
| Shrinkable tube | 60mm、50mm、40mm、25mm |
| Boot time | 1 second |
| Tension Test | Standard 2N |
| Fiber holders | 3 in 1 fiber holder，SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable |
| Magnification | 300 for X or Y , 150 for XY view |
| Screen | 5 inch TFT color display |
| Software update length | Automatically update, Update by a key |
| Splicing Mode | Normal / high precision splicing(splicing prograns max 100) |
| Splicing method | Fully automatic,step by step splicing |
| Splicing record storage | Synchronize to the phone, the server to cloud storage unlimited |
| Built-in battery | 7800 mAh high-capacity lithium battery, charging time≤3.5 hours, continuous splicing and heating about 240 times |
| Power supply | Input AC100-240V 50 / 60HZ, output DC13.5V / 4.8A, the current power mode can be identified, real-time detection of battery power |
| Operating Conditions | Temperature -15 ~ +50 ℃, humidity: <95% RH (no condensation),Working altitude: 0 ～ 5000m. Resist max. wind speed: ≤ 15m / s |
| Product protection | Waterproof IP 22,dust proof IP54,shock-resistant |
| Language setting | 10 languages to switch freely |
| Visual Fault Locator | Power:15mw,2hzflashing And Constantly Bright Mode |
| Optical Power Meter | Wavelength:850nm、1300nm、1310nm、1490nm、1550nm、1625nm / Measuring Range:-70 ~ +6db Absolute Error:<0.3db(-50dbm ~ +3dbm Range) |
