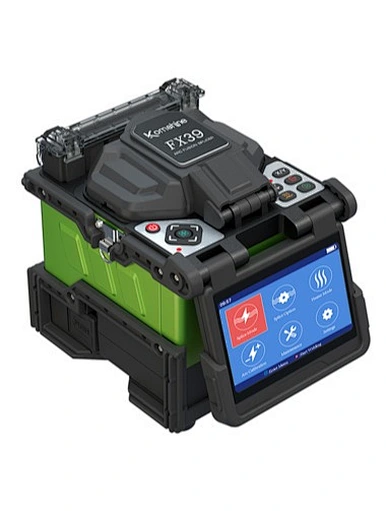

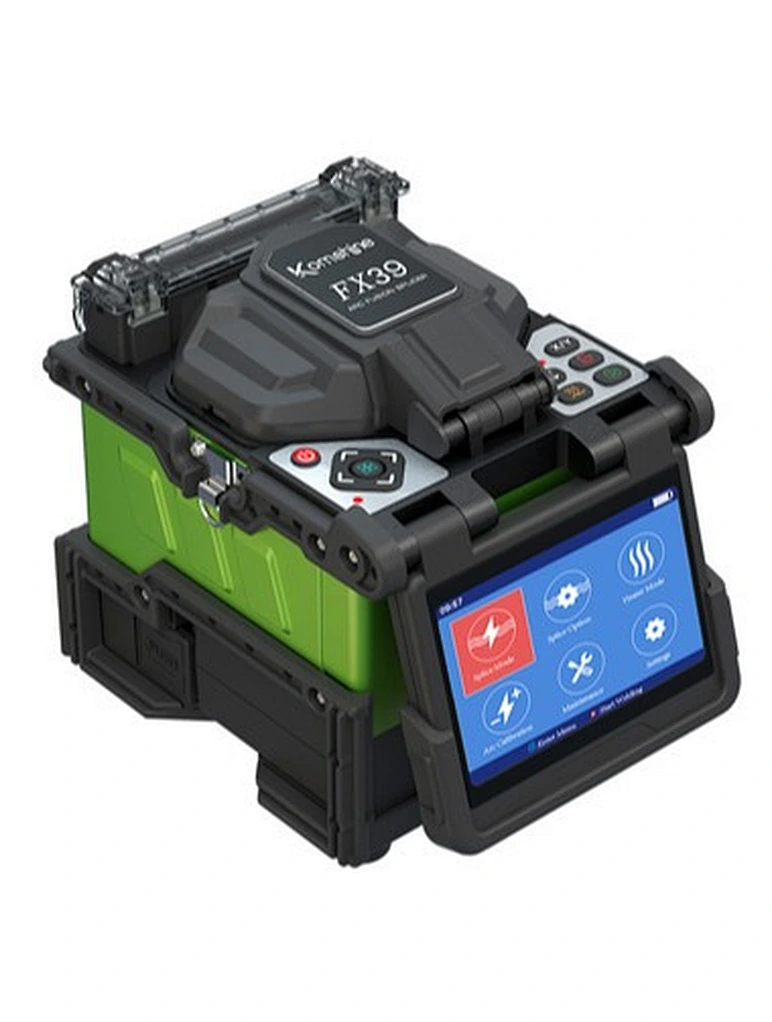

Best Fusion Splicer Fiber Optic Splicing Machine FX-39
FX-39
● 6S fast splicing, 16S fast heating
● 4.3 inch LCD color display
● Silicone protective cover, can effffectively waterproof, anti-fall, anti-vibration
● Real-time discharge correction, stable splicing accuracy
● USB interface, convenient for data download and software update
● Small size, easy to carry and transport
● 5000 times electrode service life
● Average splice loss 0.01dB
● 7800mAh battery, 400 cycles of splicing and heating
● Can store 10000 sets of splicing results and 2000 sets of images
● 4.3 inch LCD color display
● Silicone protective cover, can effffectively waterproof, anti-fall, anti-vibration
● Real-time discharge correction, stable splicing accuracy
● USB interface, convenient for data download and software update
● Small size, easy to carry and transport
● 5000 times electrode service life
● Average splice loss 0.01dB
● 7800mAh battery, 400 cycles of splicing and heating
● Can store 10000 sets of splicing results and 2000 sets of images
Quantity
| Ausrichtung methode | Core core-ausrichtung |
| Anwendbar faser typ | SM(ITU-T G.652 & G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655) |
| Faser typ | Austauschbare universal leuchte, SOC leuchte (optional) |
| Faser durchmesser | Verkleidung durchmesser: 80-150μm,Beschichtung durchmesser: 100 ~ 100 0μm |
| Schneiden länge | 8 ~ 16mm |
| Spleißen modus | Maximale 128 gruppen |
| Spleißen verlust | SM: 0,02 dB / MM: 0,01 dB / DS: 0,04 dB / NZDS: 0,04 dB / G.657: 0,02 dB① |
| Rückkehr verlust | >>60dB |
| Spleißen zeit | 6 sekunden(SM G652 SCHNELL modus) |
| Verlust schätzung | Ja |
| Heizung zeit | 16 sekunden(SM G652 250um 40mm schrumpf schlauch, basierend auf schnell modus) Benutzer einstellbar |
| Anwendbar wärme schrumpf länge | 20mm, 30mm, 40mm, 50mm, 60mm |
| Heizung modus | Maximale 32 gruppen |
| Batterie kapazität | 7800mAh lithium-batterie, jeder zyklus unterstützt 400 mal spleißen und heizung② |
| Elektrode lebensdauer | Über 5000 mal entlädt③ |
| Automatische entladung kalibrierung | Automatisch kalibrieren nach umgebungs temperatur und luftdruck änderungen |
| Ergebnis lagerung | 100 00 sets von splice daten, oder 100 sätze von splice bilder |
| Tension testing | 1.96 ~ 2,25 N |
| Betriebs bedingungen | Höhe: 0 ~ 5000meter,Relative feuchtigkeit: 0 ~ 95%,-20 ~ 50, Maximale wind geschwindigkeit: 15meter/sekunde |
| Lagerung zustand | Relative feuchtigkeit 0 ~ 95% , -20 ~ 60 °C temperatur |
| Display screen | 4,3 zoll, hohe-definition LCD display |
| Zoom in und display | X, Y, XY, X/Y : 320 mal vergrößerung |
| Gewicht | 1,72 kg ohne batterie/2,25 kg mit batterie |
| Größe | 158H x 132W x 157D mm (einschließlich gummi stoßstange |
| Port | USB 2,0 |
★①Use standard optical fifiber, according to the ITU-T and IEC standard cut method to test the results, the loss will change due to the
environment and the characteristics of the optical fifiber.
★②The results measured in room temperature environment are largely affffected by the battery usage status and operating environment
★③Thelife of the electrode will change due to the environment, fifiber type and splicing mode
