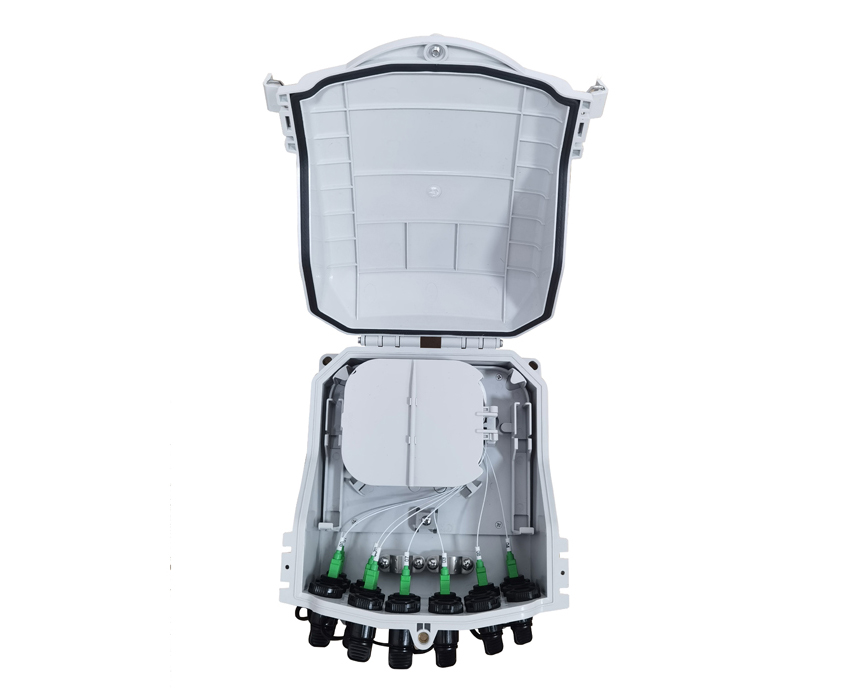

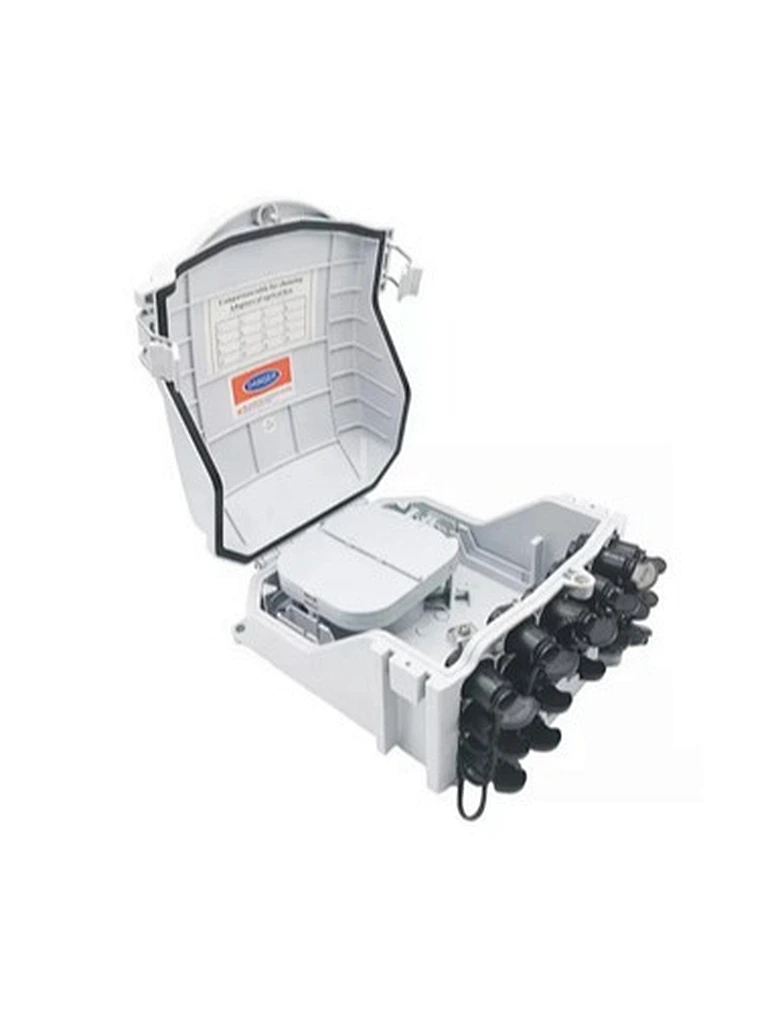

Ftth Optical Equipment IP65 Waterproof Splitter Distribution Box
FTB-16M
★ The body is made of high quality engineering plastic with good strength;
★ With safe special-shaped lock, the box can be opened easily and has good water-proof performance, suitable for indoor and outdoor natural environments;
★ With water-proof adapter, the box can be operated more conveniently;
★ With double-page design, the box can be installed and maintained easily, the fusion and termination are completely separated;
★ The drop leaf can be installed 2 pcs of 1*8 tube splitter
★ With safe special-shaped lock, the box can be opened easily and has good water-proof performance, suitable for indoor and outdoor natural environments;
★ With water-proof adapter, the box can be operated more conveniently;
★ With double-page design, the box can be installed and maintained easily, the fusion and termination are completely separated;
★ The drop leaf can be installed 2 pcs of 1*8 tube splitter
Quantity
FTB-16M can connect the drop cable with feeder cable as the termination point in the FTTX network, which is cable to meet at least 16 users requirements. It can help splicing, splitting, storage and management with suitable space.Fiber Optic Distribution Box FTB-16M is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile, it provides solid protection and management for the FTTx network building.
Max Capacity: 16 Core, Mini SC IP rated Waterproof connectors,
Into the largest cable diameter:12mm,
(Model-1:Without PLC,4PCS SC/APC Adapter),
(Model-2:Without PLC, 8PCS SC/APC Adapter),
(Model-3:Without PLC,16PCS SC/APC Adapter),
(Model-4: 1PCS 1x4 PLC Splitter-SC/APC,4PCS SC/APC Adapter),
(Model-5: 2PCS 1x4 PLC Splitter-SC/APC,8PCS SC/APC Adapter),
(Model-6: 1PCS 1x8 PLC Splitter-SC/APC,8PCS SC/APC Adapter),
(Model-7: 2PCS 1x8 PLC Splitter-SC/APC,16PCS SC/APC Adapter),
(Model-8: 1PCS 1x16 PLC Splitter-SC/APC,16PCS SC/APC Adapter).
| Model No. | FTB-16M |
| Capacity | 16cores |
| Material | PC+ABS, ABS |
| Dimension(L*W*D,MM) | 216*239*117 |
| Color | Black, Grey White.. |
| Protection Level | IP55 |
| Flame retardant performance | Non-flame retardant |
| Splitter | Can be with 2x1:8 tube splitter |
| Plastic bag size | 500*410mm |
| Inner box with single corrugated size | 275*230*127mm |
| Carton with double corrugated size | 475*290*650mm(10PCS/Box) |
| Weight per carton | 10.5KG |
