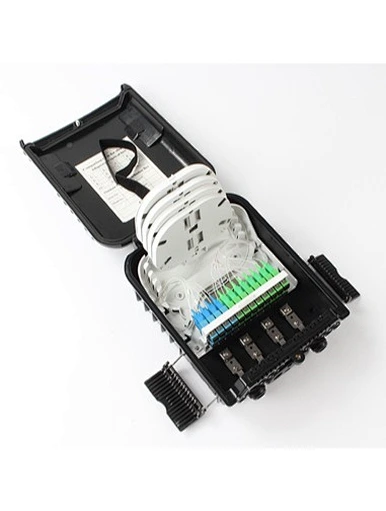

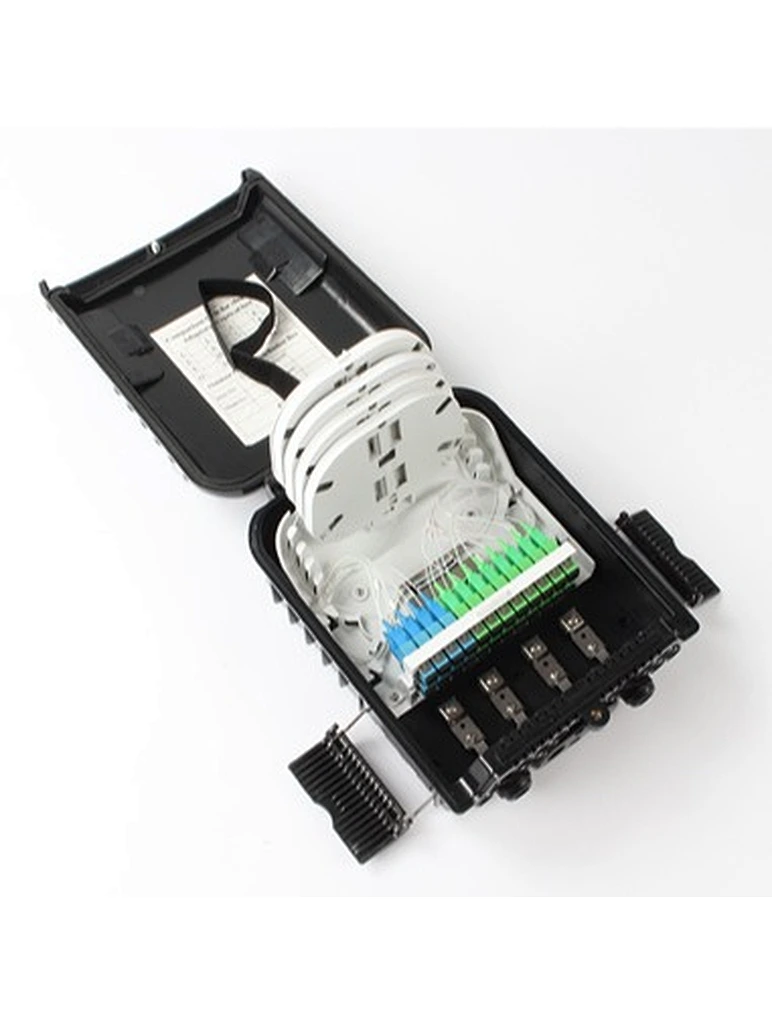

Fiber Optic Panel Distribution Terminal Box
0416
This box is used as a termination point for the feeder cable to connect with drop cable in FTTX
communication network system. It intergtates fiber splicing, splitting, distribution, storage and
cable connection in one unit. Meanwhile, it provides solid protection and management for the
FTTX network building.
communication network system. It intergtates fiber splicing, splitting, distribution, storage and
cable connection in one unit. Meanwhile, it provides solid protection and management for the
FTTX network building.
Quantity
Features
★Total enclosed structure.
★Material: ABS, wet-proof、 water-proof、dust proof、anti-aging, protection level up to IP65.
★Clamping for feeder cable and drop cable, fiber splicing, fixation, storage distribution ... etc all in one.
★Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor .installation,
easy maintenance.
★Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
★Box can be installed by the way of wall-mounted or poled mounted,suitable for both indoor and outdoor uses.
Applications
★Wall mounting and pole mounting installtion
★FTTH pre-installation and filed installation
★5-10mm cable ports suitable for 2x3mm indoor FTTH drop cable and outdoor figure FTTH self-supporting drop cable
Standard Accessories
★Screw: 4mm*40mm 4pcs
★Expension bolt: M6 4pcs
★Cable tie:3mm*10mm 6pcs
★Heat-shrink sleeve:1.0mm*3mm*60mm 16pcs
★Key:1pcs
★Material: ABS, wet-proof、 water-proof、dust proof、anti-aging, protection level up to IP65.
★Clamping for feeder cable and drop cable, fiber splicing, fixation, storage distribution ... etc all in one.
★Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor .installation,
easy maintenance.
★Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
★Box can be installed by the way of wall-mounted or poled mounted,suitable for both indoor and outdoor uses.
Applications
★Wall mounting and pole mounting installtion
★FTTH pre-installation and filed installation
★5-10mm cable ports suitable for 2x3mm indoor FTTH drop cable and outdoor figure FTTH self-supporting drop cable
Standard Accessories
★Screw: 4mm*40mm 4pcs
★Expension bolt: M6 4pcs
★Cable tie:3mm*10mm 6pcs
★Heat-shrink sleeve:1.0mm*3mm*60mm 16pcs
★Key:1pcs
| Model Number | FK-0416 |
| Type | Fiber optic distribution box |
| Use | SDU, MDU, FTTH, CATV |
| Warranty Time | 5 YEARS |
| Function 1 | Cable solid protection |
| Function 2 | Cable splicing |
| Function 3 | Fiber distribution and termination |
| Function 4 | Drop cable feeder |
| Size | 300*210*90mm |
| Material | PC+ABS, ABS |
| Color | Black, White, Gray |
| Max Capacity | Splice 16 Fibers (1trays,16core/tray) |
| Nos of PLC | 1pcs of 1x8 PLC；1pcs of 1x16 PLC |
| Nos of Adaptor | 16 pcs of SC(max) |
| Weight | 1.35kg |
| Ports | 4 in 16 out |
