Fiber Optic Distribution Termination Wall Box
FTB-16B
●PC+ABS Alloy Water-Proof Material
● The fiber distribution box can stand >500N impact strength
● Super-Long Life Span of 20 Years
●Quality Garantee, Extra-good After-Sales Service.
●High Load Capacity Able to Bear Two Adults' Weight.
● Excellent Water-proof Performance
●PC+ABS Alloy Material Great Anti-UV Abili
● The fiber distribution box can stand >500N impact strength
● Super-Long Life Span of 20 Years
●Quality Garantee, Extra-good After-Sales Service.
●High Load Capacity Able to Bear Two Adults' Weight.
● Excellent Water-proof Performance
●PC+ABS Alloy Material Great Anti-UV Abili
Quantity

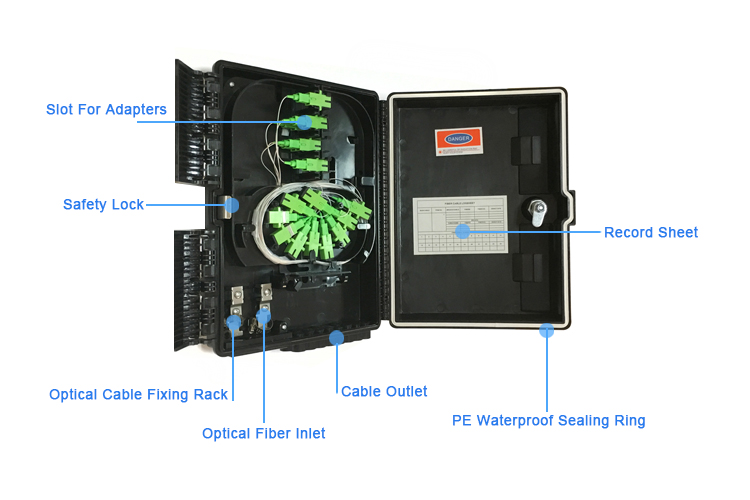

The optical splitter box is also named the optical fiber distribution box, the end-user fiber distribution equipment in the FTTH optical network, which is mainly used for the fusion, splitting, wiring output and other functions of the optical transmission terminal. It can effectively terminate, protect and manage the optical cable. It is anecessary equipment in the optical transmission process network.16 adapters and 16 pigtails or 16 adapters and one 1:16 PLC splitter can be placed in the box. The distribution box can be wall-mounted or pole-mounted. By default, there is no hoop. The pole needs to be equipped with hoop.
Wolck termination box is designed for use in residential,communication room,business and outdoor applications for the termination of up to 16 fibers. FTB is used as a termination point for the feeder cable to connect with drop cable in FTTH communication network system.It allows also fiber splitting,splicing and distribution.Provides solid protection and management for the FTTH network building.
| FEATURES & BENEFITS | |

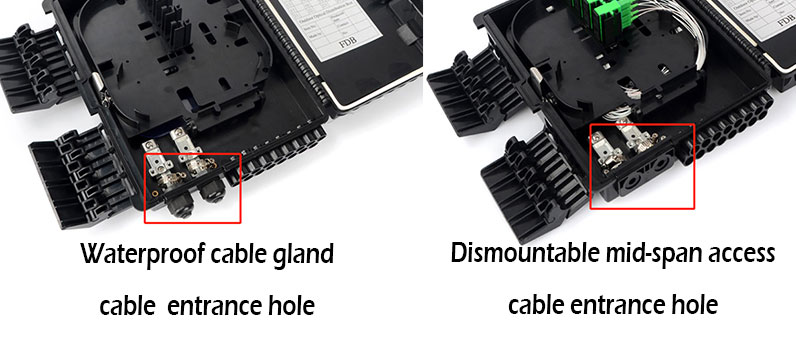

| Total enclosed structure | Clamping for feeder and drop cable |
| Can be installed in wall or pole mount | Suitable for outdoor use |
| Secured unique Lock | Flip tray to allow access to pigtail and cable entry |
| Material:PC+ABS | Water proof,dust proof,protection level :IP65. |
| TECHNICAL CHARACTERISTICS | |
| Number of Splice trays | 1 |
| Maximum fiber capacity | 16 |
| Numbers of Customer feed | 16 patch cord |
| Operating Temperature | -40℃ to +85℃ |
| Materials | PC+ABS |
| Testing | Optical Tested:1310nm,1550nm and 1625nm |
| Relative Humidity | ≤85%(+30℃) |
| Atmospheric Pressure | 70KPa-106KPa |
| Size | 302.5mm*235.8mm*106.5mm |
