Cheap Harga Mini Splicing Machine Price AI-6C
AI-6C

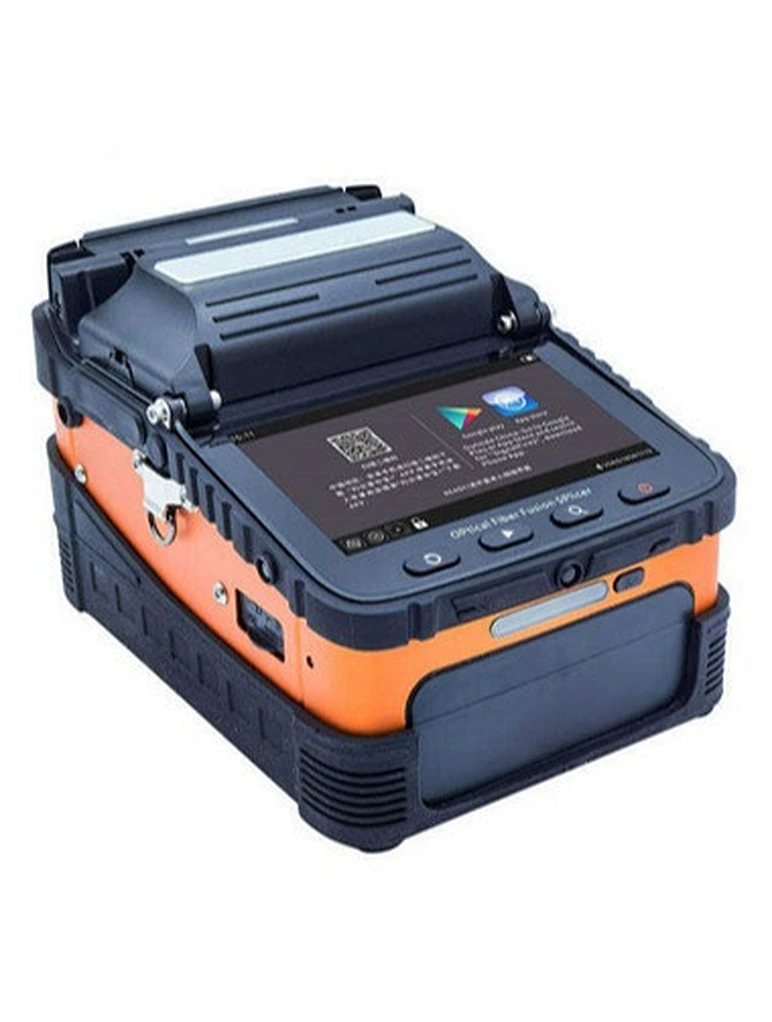

Signal Fire AI-6C/7C/8C/9 use the latest core alignment technology with auto focus and six motors,
it is a new generation of fiber fusion splicer. It is fully qualified with 100 km trunk construction,
FTTH project, security monitoring and other fiber cable splicing projects.
it is a new generation of fiber fusion splicer. It is fully qualified with 100 km trunk construction,
FTTH project, security monitoring and other fiber cable splicing projects.
Quantity
| Name | fusion splicer machinecheapest splicing machinefusion splicer machinecheapest splicing machinefusion splicer machinecheapest splicing machinefusion splicer machinecheapest splicing machinefusion splicer machinecheapest splicing machinefusion splicer machinecheapest splicing machine |
| Applicable Fibers | SM(G.652&G.657)、MM（G.651）、DS(G.657)、NZDS（G.655） |
| Splice Loss | 0.025dB（SM）、0.01dB（MM）0.04dB（DS/NZDS） |
| Focus mode | 6 motors Auto focus |
| Fiber alignment | Core/cladding alignment Manual alignment |
| Typical splicing time | 8S |
| Typical heating time | 18S Fast heating function, heating time can be set ，Automatic heating(Preheating),heating programs(max.10) |
| Control technology | Real-time control and calibration of fusion ARC |
| Return loss | Better than 60DB |
| Fiber diameter | Cladding Diameter 80-150μm，Coating Diameter 100-1000μm |
| Fiber Cleave Length | Coating less than 250µm：5-16mmCoating less m250-1000μm:16mm |
| Shrinkable tube | 60mm、50mm、40mm、25mm |
| Boot time | 1 second |
| Tension Test | Standard 2N |
| Fiber holders | 3 in 1 fiber holder，SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable |
| Magnification | 300 for X or Y , 150 for XY view |

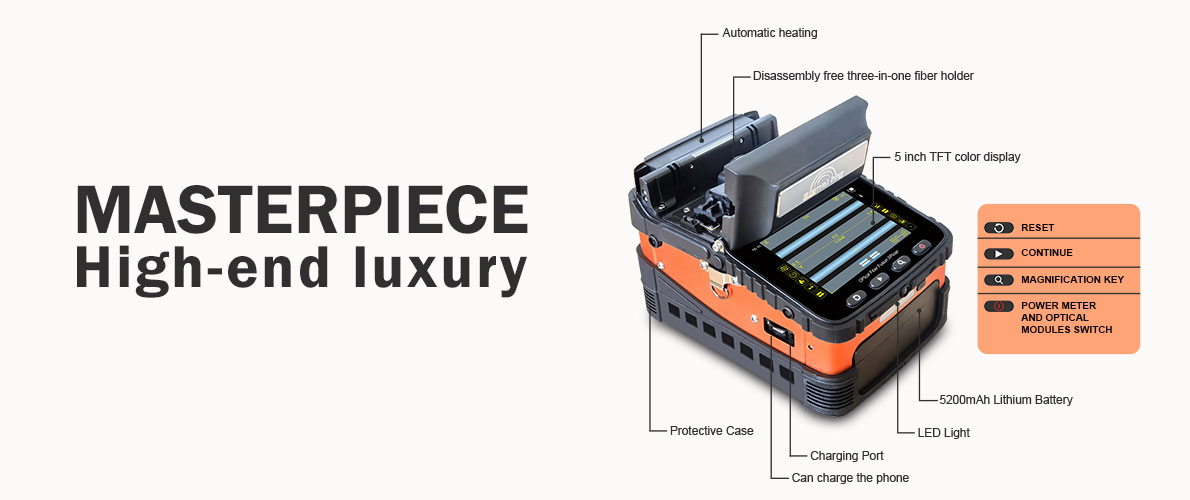

| Screen | 5 inch TFT color display |
| Software update length | Automatically update, Update by a key |
| Splicing Mode | Normal / high precision splicing(splicing prograns max 100) |
| Splicing method | Fully automatic,step by step splicing |
| Splicing record storage | Synchronize to the phone, the server to cloud storage unlimited |
| Built-in battery | 5200 mAh high-capacity lithium battery, charging time≤3.5 hours, continuous splicing and heating about 160 times |
| Power supply | Input AC100-240V 50 / 60HZ, output DC13.5V / 4.8A, the current power mode can be identified, real-time detection of battery power |
| Operating Conditions | Temperature -15 ~ +50 ℃, humidity: <95% RH (no condensation),Working altitude: 0 ～ 5000m. Resist max. wind speed: ≤ 15m / s |
| Product protection | Waterproof IP 22,dust proof IP54,shock-resistant |
| Language setting | 10 languages to switch freely |
