Best OPM Fiber Optic Cable Power Meter KPM-11M
KPM-11M

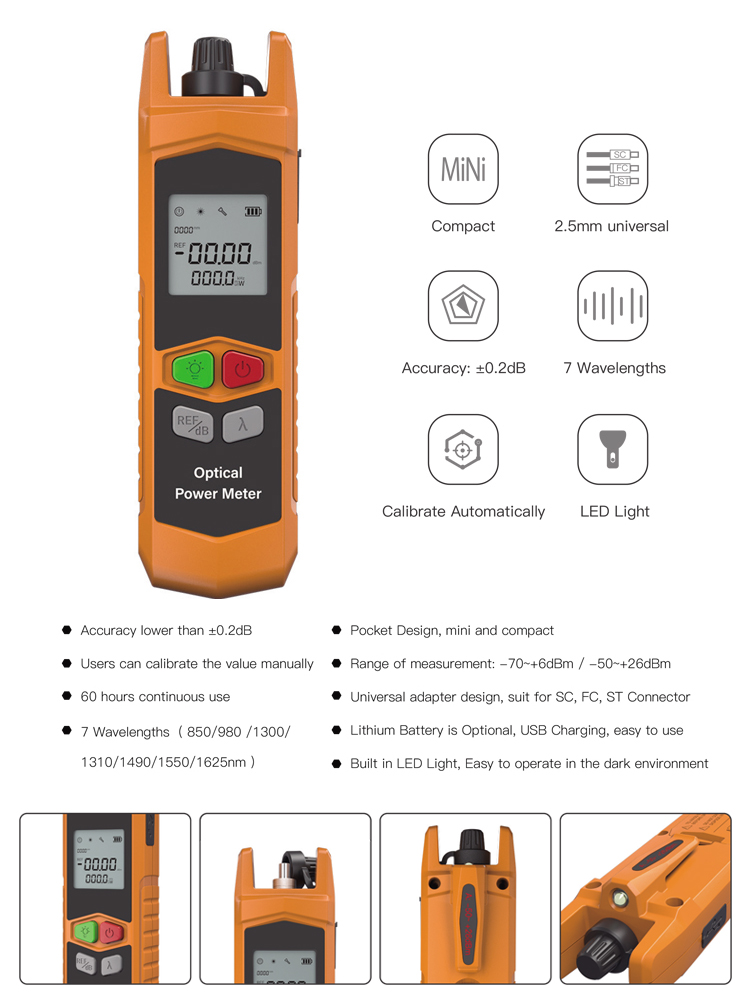

● Accuracy lower than ±0.2dB
● 60 hours continuous use
● 7 Wavelengths ( 850/980 /1300/1310/1490/1550/1625nm )

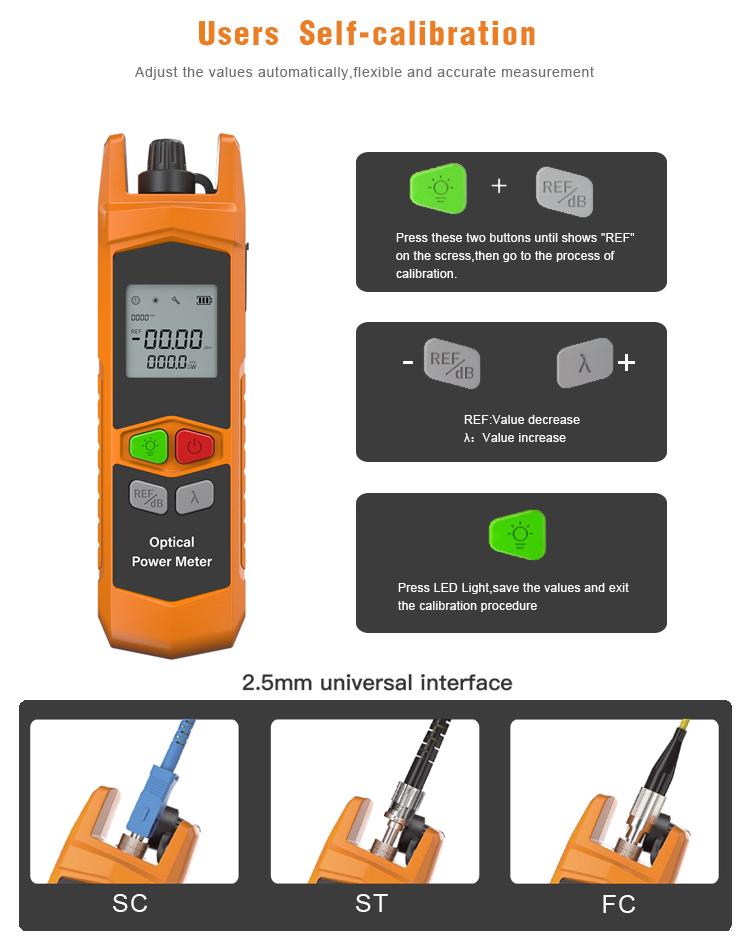

● Users can calibrate the value manually
● Pocket Design, mini and compact
● Range of measurement: -70~+6dBm / -50~+26dBm
● Universal adapter design, suit for SC, FC, ST Connector
● Lithium Battery is Optional, USB Charging, easy to use
● Built in LED Light, Easy to operate in the dark environment
● 60 hours continuous use
● 7 Wavelengths ( 850/980 /1300/1310/1490/1550/1625nm )
● Users can calibrate the value manually
● Pocket Design, mini and compact
● Range of measurement: -70~+6dBm / -50~+26dBm
● Universal adapter design, suit for SC, FC, ST Connector
● Lithium Battery is Optional, USB Charging, easy to use
● Built in LED Light, Easy to operate in the dark environment
Quantity
| Name | best fiber optic power meterfiber optic cable power meter |
| Model | KPM |
| Wavelength Range | 800 ~ 1700 (nm) |
| Probe type | InGaAs |
| Optical connector | 2.5mm universal interface(1.25mm LC optional ) |
| Measurement range（dBm） | -70~+6dBm/-50~+26dBm |
| Uncertainty | ＜ 0.2 dB |
| Standard wavelengths | 850、980、1300、1310、1490、1550、1625 (nm) |
| Resolution（dB） | 0.01dB |
| Operating temperature | -10 ~ +60 (℃) |
| Storage temperature | -25 ~ +70 (℃) |
| Automatic shutdown time | 10 min |
| Power working time | Battery type: 20h (only use of power meter) |
| Charging type: 60h (only use of power meter) | |
| LED Light | Available |
| Power supply | Built in 1000mAh Lithium battery / AAA 1.5V *2 |
| Charging port | USB (Just for charging type) |
| Size/ Weight | 127 x 36.5 x 28 mm / 61g (includes the battery) |
