How to Use CFS-3 Wire Stripper？
2022-08-23
As we all know, an important and critical step in optical fiber splicing is "stripping the optical fiber". During the splicing process, many people will encounter the situation that the fiber is easily broken or the coating layer of the optical fiber is not stripped cleanly. Repeated operations undoubtedly increase the time-consuming of the entire fiber splicing, which is quite urgent for projects with tight schedules and heavy tasks. Therefore, it is very important for the field front-line technicians to be equipped with an easy-to-use and cost-effective Miller pliers. In order to better help users solve the problem of difficult fiber stripping, the CFS-3 Miller pliers launched by Dawa Tools brings you new choices and new experiences.
How to use cfs-3 wire stripper

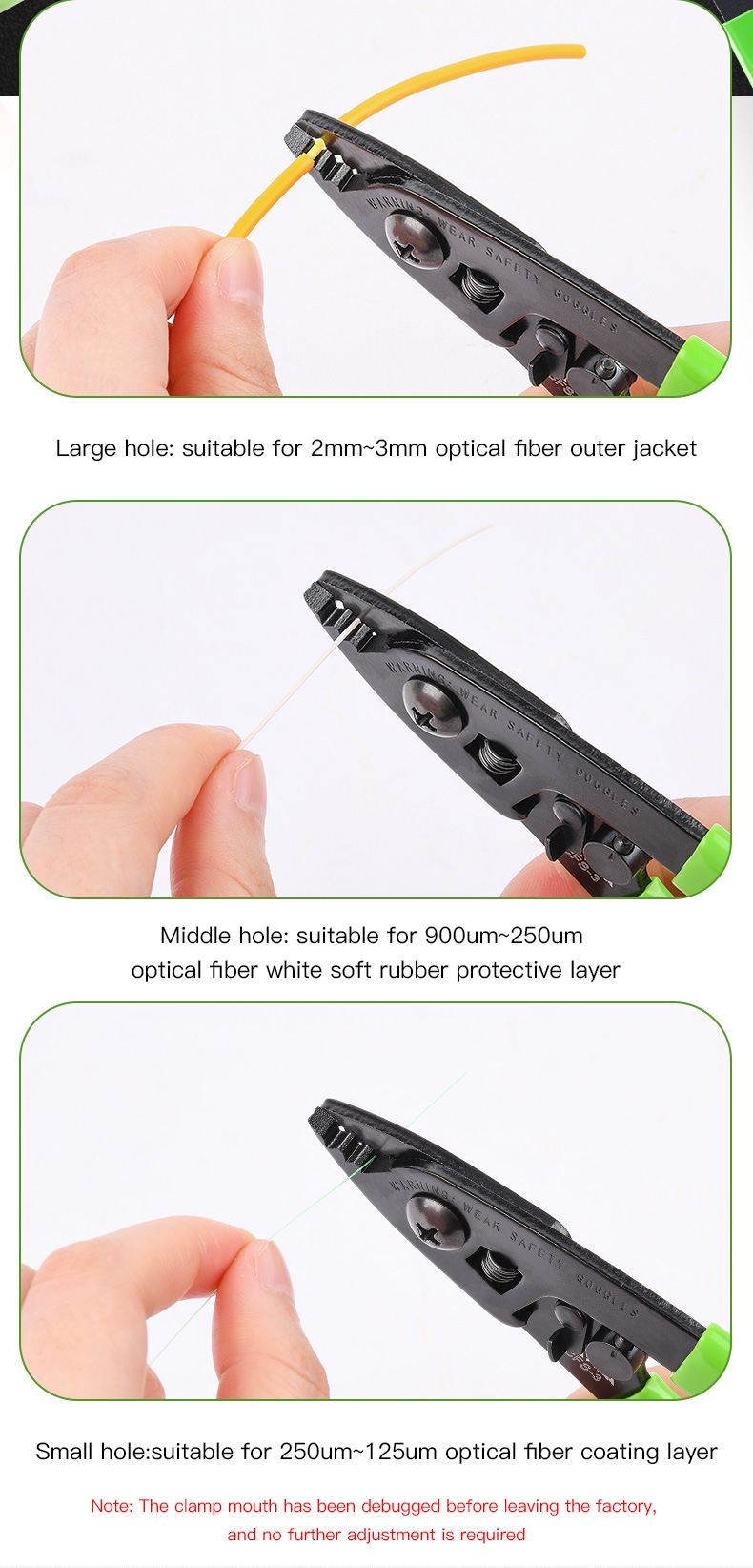

CFS-3 Miller pliers are forged with high carbon steel, which has high hardness, corrosion resistance and is not easy to rust; the small hole used to peel off the coating layer is designed with a perfect circle, allowing you to easily peel off the coating layer without damaging the optical fiber; At the same time, it also has an automatic return spring, which can be operated with one hand and is simple and easy. Rubber handle for a comfortable and firm grip. Here is a reminder for everyone to note that there should not be any impurities in the small holes of the Miller clamp for stripping the fiber. If there is, it must be removed in time.
So, what does the so-called "stripping fiber" actually mean? In fact, it refers to stripping the optical fiber core in the optical cable, including but not limited to the outer plastic layer, the middle steel wire, and the inner plastic layer. And the coating layer on the surface of the optical fiber, etc. When stripping the optical fiber coating, we must follow the principle of "smooth, steady and fast" stripping method. (Note: First, insert one side of the optical fiber into the heat shrinkable tube before fusion splicing, and it is strictly forbidden to penetrate after the end face is cut)
"Ping", pay attention to maintaining the fiber to be flat. Pinch the fiber with the thumb and index finger of the left hand to make it horizontal, and the exposed length shall be 20-30mm; "steady", it is important to hold the fiber stripper firmly, and not to tremble or shake. Otherwise, the fiber may be broken; "Fast", pay attention to stripping the fiber quickly, the stripping forceps should be perpendicular to the fiber, tilt inward about 45 degrees in the upward direction, and then lightly clamp the fiber with the jaws, then apply force with the right hand to follow the fiber. The shaft is pushed out smoothly, the whole process should be done in one go, and the fibers should be stripped as thoroughly as possible at one time. After the fiber stripping is completed, remember to wipe the bare fiber with fiber cleaning paper dipped in anhydrous alcohol, and then proceed to the next step.
In fact, "stripping fiber" is basic and common in daily optical fiber construction, but the seemingly simple operation link is often despised. If you want to successfully "strip fiber" at one time, it is essential to have a reliable Miller pliers. Dawa CFS-3 Miller pliers are your reliable and ideal fiber optic tools.
